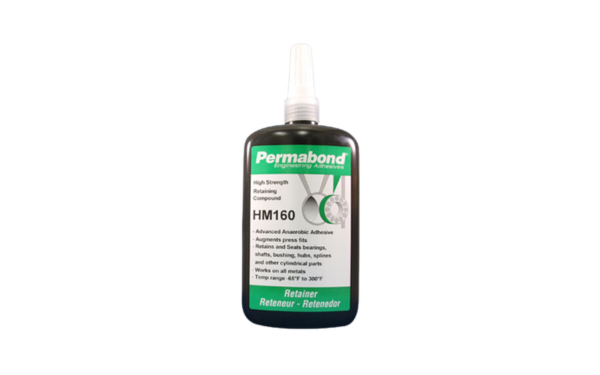

PERMABOND HM160
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Medium-Viscosity High-Strength Retaining
- Lighter Press-Fit Assembly Tolerances
- MIL-R-46082B/ASTM D5363 Compliance
Product Description
Permabond® HM160 is a medium-viscosity, high-strength anaerobic retaining compound engineered to secure and seal cylindrical metal assemblies. It cures when confined in the absence of air between close-fitting metal surfaces, transforming into a tough, hard plastic that keys into surface irregularities to fill the space between mated parts. By augmenting press fits, it allows for looser manufacturing tolerances and lighter press fits, ultimately reducing machining costs and preventing fretting corrosion and vibration-induced loosening.
Key features
- Cost-reducing design: Allows the use of lighter press fits and easier-to-assemble tolerances, decreasing required machining precision and manufacturing costs.
- Military and ASTM specified: Thoroughly tested to meet the demanding requirements of MIL-R-46082B (Type II) and ASTM D5363 (AN 0412 Group 04 Class 1 Grade 2).
- Extends component life: Reduces the stress typically caused by heavy press fits, dresses worn parts, and completely seals the joint against air and moisture to prevent corrosion.
Applications / Suitable for
- Bonding slip, press, and shrink-fitted cylindrical assemblies
- Improving alignment and filling space between bearing rings and housings
- Dressing worn cylindrical parts to keep machinery online
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Other Properties
Electrical Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical Composition | Methacrylates | - | - |
| Appearance | Green | - | Liquid |
| Viscosity | ~ 600 | mPa.s (cP) | at 23°C - 25°C |
| Specific Gravity | 1.1 | - | - |
| Maximum Gap Fill | 0.2 | mm | (0.008 in) |
| Maximum Thread Size | M30 | - | (3/4") |
| UV Fluorescence | Yes | - | - |
| Flash Point | > 93 | °C | (199.94°F) |
| Volatile Organic Compound | < 2 | % | 20 grams/liter (Estimated) |
After-processing / final-state properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Handling Strength Time | 15 | minutes | M10 steel at 23°C |
| Full Strength Time | 24 | hours | M10 steel at 23°C |
| Breakaway Torque Strength | 30 | N-m | M10 steel (ISO 10964) (270 in.lb) |
| Prevailing Torque Strength | 50 | N-m | M10 steel (ISO 10964) (450 in.lb) |
| Shear Strength | 14 | MPa | Steel collar & pin (ISO 10123) (2000 psi) |
| Coefficient of Thermal Expansion | 90E-6 | mm/m/°C | - |
| Dielectric Strength | 11 | kV/mm | - |
| Thermal Conductivity | 0.2 | W/(m.K) | - |
