LOCTITE LB8017
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Multi-Method Dry-Film Application
- 400 deg C Sliding Service
- 1315 deg C Anti-Seize Range
Product Description

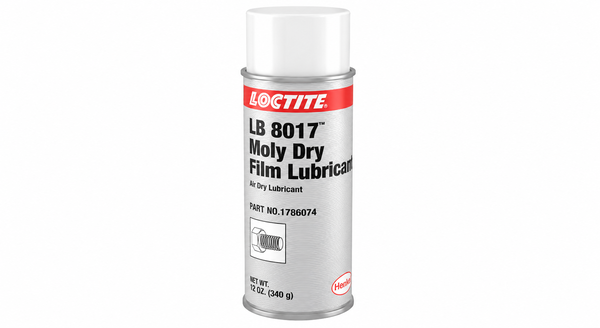

LOCTITE LB 8017 is a one-component molybdenum-disulfide solid-film lubricant for lubrication and anti-seize service. The black coating can be brushed, dipped or sprayed onto clean metal surfaces, dries in 60 minutes at 25 deg C, and does not require mixing. A typical dry-film coverage of 55.7 m^2 per 4.5 kg is reported at 0.018 mm thickness. The applied film supports continuous sliding-friction service from -29 to 400 deg C and anti-seize use from -29 to 1315 deg C. Heat curing at 204 to 260 deg C thermosets the film for increased resistance to fluids and solvents.
Key features
- Multi-method application: The lubricant can be brushed, dipped or sprayed directly onto clean metal surfaces.
- High-temperature dry film: The applied film supports continuous sliding service to 400 deg C and anti-seize service to 1315 deg C.
- Thermoset fluid resistance: Heat schedules from 204 to 260 deg C convert the film to a fluid- and solvent-resistant state.
Applications
Applications include threaded lubrication, dry bearings, slides, guides, pins, conveyor chains, exposed gears, press fits and selected aerospace or electrical mechanisms.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied properties
Typical as-supplied properties and dry-film coverage.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Black | As supplied | |
| Specific gravity | 1.3 | At 25 deg C | |
| Density | 1.29 | g/ml | At 25 deg C |
| Solids / nonvolatile content | 48 to 53 | % | As supplied |
| Weight per gallon | 10.5 to 11.1 | lb/gal | As supplied |
| Dry-film coverage | 55.7 | m^2 per 4.5 kg | At 0.018 mm dry-film thickness |
After-application / in-service properties
After-application and in-service behavior under the stated film condition and test configuration.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Continuous sliding-friction range | -29 to 400 | deg C | Applied solid-film lubricant |
| Anti-seize operating range | -29 to 1315 | deg C | Applied anti-seize film |
| Torque coefficient | 0.06 to 0.12 | 12.7 mm grade 8 steel bolts with grade 5 nuts | |
| Unlubricated torque coefficient | 0.27 | Same bolt-and-nut configuration, solvent cleaned | |
| Air-dried film fluid behavior | Withstands water and water solutions | May soften or dissolve in organic solvents and oils | |
| Oven-cured film fluid behavior | Does not dissolve in most solvents and fluids | After a thermoset cure at 204 to 260 deg C |
