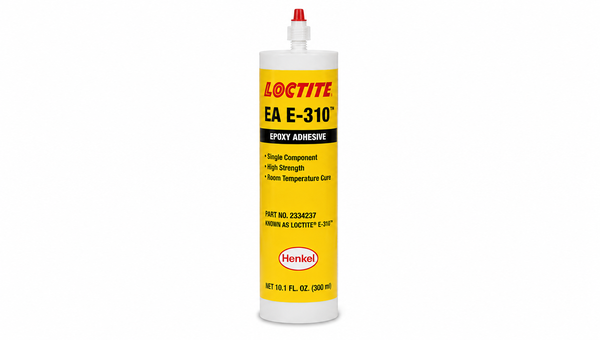

LOCTITE EA E-310
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Glass, Metal, and Plastic Bonding
- 6,000 psi Shear Strength
- Up to 5.1 mm Gap Filling
Product Description
LOCTITE® EA E-310 is a single-component epoxy adhesive for structural bonding of metal, glass, and plastic. The silver-gray material cures at elevated temperatures and has a typical viscosity of 400,000 mPa·s at 25°C, supporting controlled placement and gap filling up to 5.1 mm (0.2 in). The cured adhesive is characterized by vibration and impact resistance, with typical lap shear strength reaching 6,000 psi (41 MPa) on steel under ASTM D1002 testing. Its documented operating-temperature range is -85°C to 204°C (-65°F to 400°F), making it suitable for evaluation in bonded assemblies exposed to a broad range of service temperatures.
Key features
- Single-component heat-cure epoxy: Eliminates component mixing and cures in 12 to 45 minutes at documented temperatures from 150°C to 200°C.
- Structural bonding performance: Provides typical ASTM D1002 lap shear strength of 6,000 psi (41 MPa) on steel and 5,800 psi (40 MPa) on aluminum.
- Gap-filling consistency: The 400,000 mPa·s viscosity at 25°C and maximum documented gap of 5.1 mm support thicker adhesive sections.
Applications / Suitable for
- Structural bonding of metal substrates
- Structural bonding of glass
- Structural bonding of plastic substrates
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical properties of the adhesive before elevated-temperature curing.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical type | Epoxy | — | Single-component material |
| Appearance | Silver-gray | — | Typical value |
| Viscosity | 400,000 | mPa·s (cP) | At 25°C |
| Specific gravity | 1.5 | — | At 25°C |
| Flash point | >93 (>200) | °C (°F) | TCC |
| Maximum gap | 5.1 (0.2) | mm (in) | Typical documented maximum |
After-processing / final-state properties
Typical properties of the cured adhesive. Strength values are specific to the documented substrates and laboratory test configurations.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Shear strength | 6,000 (41) | psi (MPa) | ASTM D1002; steel/steel |
| Shear strength | 5,800 (40) | psi (MPa) | ASTM D1002; aluminum/aluminum |
| Shear strength | 1,800 (12) | psi (MPa) | ASTM D1002; SMC plastic/SMC plastic; substrate failure |
| Peel strength | 24 | lb/linear in | ASTM 1876; steel/steel |
| Operating temperature | -85 to 204 (-65 to 400) | °C (°F) | Typical cured-material property |
| Glass transition temperature | 118 (244) | °C (°F) | Typical value; test method not stated |
| Thermal conductivity | 0.40 | Btu/ft²/hr/°F | Typical value |
| Volume resistivity | 3.1 × 106 | ohm-cm | Typical cured-material property |
