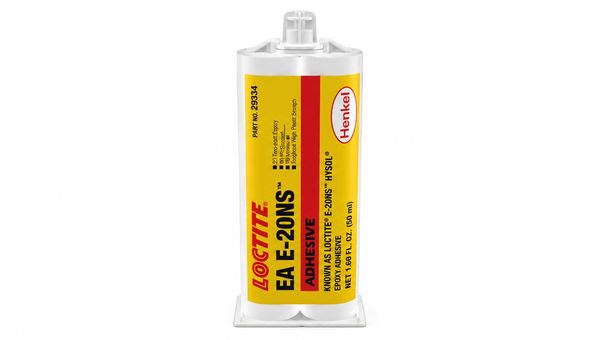

LOCTITE EA E-20NS
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Non-Sag Vertical Bonding
- Tough High-Peel/Shear Bonding
- Electrically Insulating Multi-Material Bonding
Product Description
LOCTITE® EA E-20NS™ is a two-component, industrial-grade epoxy adhesive that cures at room temperature to form an off-white, tough bondline. Its non-sagging, medium-viscosity formulation supports controlled application on vertical surfaces while reducing run-off. The adhesive develops strong bonds on aluminum, stainless steel and other metals, as well as glass, ceramics and selected plastics. It has a 20-minute working life and provides high peel resistance, high shear strength and electrical insulation after full cure. The cured material also resists a range of chemicals and solvents.
Key features
- Non-sagging consistency: Supports application on vertical surfaces without excessive run-off.
- Tough bonded joints: The cured epoxy provides high peel resistance and high shear strength.
- Electrical insulation: Fully cured material has a typical dielectric breakdown strength of 24 kV/mm.
Applications / Suitable for
- Bonding aluminum, stainless steel and other metals
- Bonding glass and ceramics
- Bonding compatible plastics
- Vertical-surface bonding where non-sag application is required
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical properties of the separate resin and hardener components and the material after mixing.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mix ratio, resin to hardener | 2:1 | By volume | Two-component system |
| Mix ratio, resin to hardener | 100:48 | By weight | Two-component system |
| Resin viscosity | 80,000–280,000 | mPa·s (cP) | Brookfield RVT, 25 °C, spindle 7, 20 rpm |
| Hardener viscosity | 30,000–90,000 | mPa·s (cP) | Brookfield RVT, 25 °C, spindle 7, 50 rpm |
| Mixed specific gravity | 1.43 | — | At 25 °C |
| Working life | 20 | min | Mixed material |
| Tack-free time | 20 | min | Mixed material |
| Mixed appearance | Off-white | — | After resin and hardener are mixed |
After-processing / final-state properties
Typical physical, electrical and adhesive properties after curing under the stated conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Glass transition temperature | 75 | °C | Cured at 25 °C |
| Coefficient of thermal expansion | 52 × 10−6 pre-Tg; 183 × 10−6 post-Tg | K−1 | ISO 11359-2; cured at 25 °C |
| Shore hardness | 84–94 | Shore D | ISO 868; cured at 25 °C |
| Elongation | 4 | % | ISO 527-2; cured at 25 °C |
| Tensile strength | 23 | N/mm² | ISO 527-2; cured at 25 °C |
| Dielectric breakdown strength | 24 | kV/mm | IEC 60243-1; cured at 25 °C |
| Lap shear strength on grit-blasted steel | 19.2 | N/mm² | Cured 5 days at 22 °C |
| Lap shear strength on acid-etched and abraded aluminum | 17.3 | N/mm² | Cured 5 days at 22 °C; 0.1–0.2 mm bondline gap |
