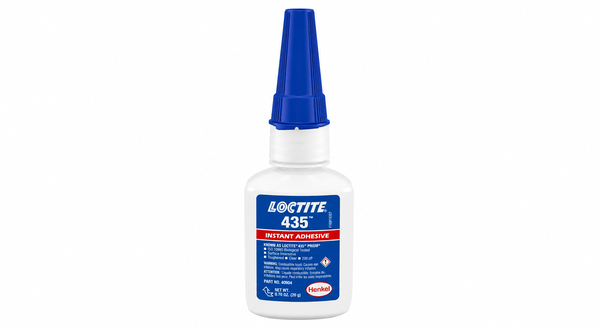

LOCTITE 435
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Rubber-Toughened Peel Resistance
- Low-Viscosity Rapid Bonding
- Porous-Material Bonding Range
Product Description
LOCTITE 435 is a one-part, low-viscosity, rubber-toughened ethyl cyanoacrylate instant adhesive for metals, plastics, rubbers, and selected porous materials. The toughened formulation combines increased flexibility and peel strength with resistance to shock. A viscosity of 100 to 250 mPa s supports rapid wetting and thin bondlines, while fixture time ranges from under 5 seconds on nitrile rubber and balsa wood to 30 to 60 seconds on common metal substrates. The adhesive also bonds wood, paper, leather, and fabric when those materials fit the assembly requirements.
Key features
- Rubber-toughened flexibility: The cured adhesive provides increased flexibility and peel strength with enhanced shock resistance.
- Low-viscosity rapid wetting: A 100 to 250 mPa s viscosity supports thin bondlines and fast fixture on many substrates.
- Porous-material bonding range: The product supports selected wood, paper, leather, and fabric assemblies in addition to common engineering materials.
Applications / Suitable for
- Shock- and peel-resistant bonding of metals
- Bonding plastics, rubbers, and elastomers
- Bonding selected porous or absorbent materials
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Mechanical Properties
Electrical Properties
Curing Conditions
Additional Information
As-supplied / before-processing properties
Typical values for the product before cure, application, or assembly.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Colorless to straw, slightly cloudy liquid | - | Uncured |
| Chemical type | Ethyl cyanoacrylate | - | As supplied |
| Components | One part | - | No mixing required |
| Specific gravity | 1.1 | - | 25 deg C |
| Viscosity | 100 to 250 | mPa s | Cone and plate, 25 deg C, shear rate 1,000 s^-1 |
| Cure mechanism | Humidity | - | Atmospheric moisture |
After-processing / final-state properties
Typical values for the cured or installed product under the listed conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Fixture time, nitrile rubber | <5 | s | 22 deg C, 50% RH; time to 0.1 N/mm^2 shear strength |
| Fixture time, ABS | 10 to 20 | s | 22 deg C, 50% RH; time to 0.1 N/mm^2 shear strength |
| Fixture time, aluminum | <=60 | s | Isopropanol-wiped aluminum, 22 deg C, 50% RH |
| Glass transition temperature | 130 | deg C | ISO 11359-2; cured 24 h at 22 deg C |
| Lap shear strength, grit-blasted steel | 19 | N/mm^2 | Cured 24 h at 22 deg C |
| 180-degree peel strength, grit-blasted steel | 4 | N/mm | ISO 8510-2; cured 48 h at 22 deg C |
| Side impact resistance, aluminum | >=4 | J | Cured 24 h at 22 deg C |
