LOCTITE 268
Harmonization Code : 3824.99.92.97 | Prepared binders for foundry molds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included: other : other : other
Main features
- High-Strength Thread Retention
- Self-Feeding Stick Control
- Active and Passive Metal Cure
Product Description

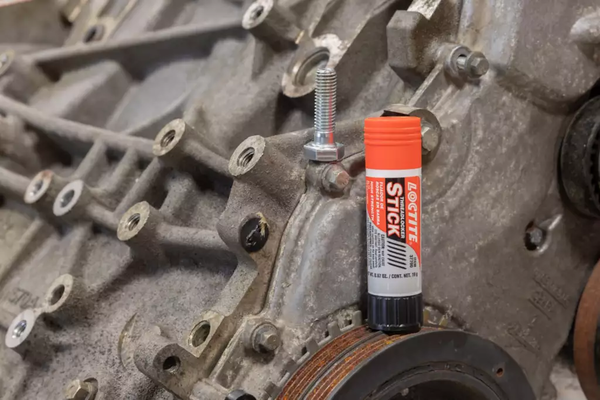

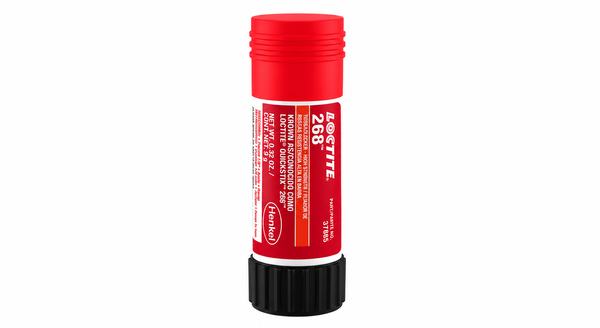

LOCTITE 268 is a red, wax-consistency anaerobic threadlocker supplied in a self-feeding stick for high-strength locking of metal fasteners. The semi-solid format supports direct contact with threaded parts and controlled coverage where a liquid grade may be too fluid or difficult to apply. It cures without air between close-fitting metal surfaces and develops strength on active metals such as brass and copper as well as passive surfaces including stainless steel and plated fasteners. UV fluorescence supports application inspection. Torque values apply to degreased steel, black-oxide steel, and stainless-steel assemblies under defined cure schedules.
Key features
- High-strength retention: The cured threadlocker is intended for fasteners requiring durable locking strength.

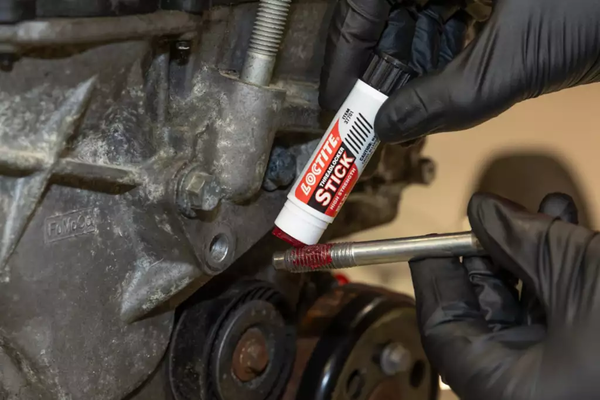

- Self-feeding stick control: The wax-like semi-solid format supports direct and even application to threads.
- Broad metal cure: The anaerobic system develops strength on active and passive metal substrates.
Applications / Suitable for
- High-strength locking of active and passive metal fasteners
- Stainless steel and plated threaded assemblies
- Applications where semi-solid stick placement is preferred
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Chemical Properties
Additional Information
As-supplied / before-processing properties
Typical values for the product before cure or assembly.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance and form | Red wax-consistency stick | - | Uncured |
| Components | One | - | No mixing required |
| Fluorescence | Positive | - | Visible under UV light |
| Specific gravity | 1.03 | - | Typical at 25 deg C |
| Unworked penetration | 90 to 150 | 0.1 mm | ISO 2137 |
| Melting point | >65 | deg C | Typical |
After-processing / final-state properties
Typical values for the cured product under the listed conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Breakloose torque | >=8 | N m | ISO 10964; pretorqued 5 N m; degreased 3/8 x 16 steel; cured 1 h at 25 deg C |
| Breakloose torque | >=8 | N m | ISO 10964; pretorqued 5 N m; degreased stainless 3/8 x 16; cured 4 h at 25 deg C |
| Breakaway torque | 10 | N m | ISO 10964; degreased 3/8 x 16 steel; cured 24 h at 22 deg C |
| Breakaway torque | 16 | N m | ISO 10964; degreased stainless 3/8 x 16; cured 24 h at 22 deg C |
| Breakloose torque | >=17 | N m | ISO 10964; pretorqued 5 N m; degreased 3/8 x 16 steel; cured 24 h at 22 deg C |
| Breakloose torque | 40 | N m | ISO 10964; pretorqued 5 N m; degreased M10 black-oxide steel; cured 24 h at 22 deg C |
| Breakloose torque | 23 | N m | ISO 10964; pretorqued 5 N m; degreased stainless 3/8 x 16; cured 24 h at 22 deg C |
