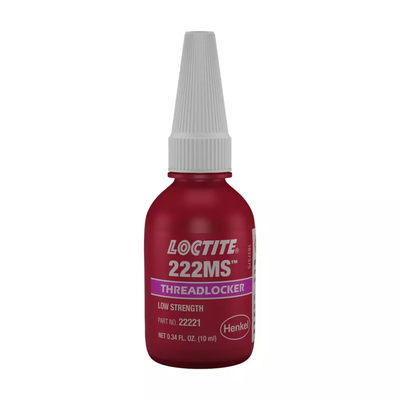

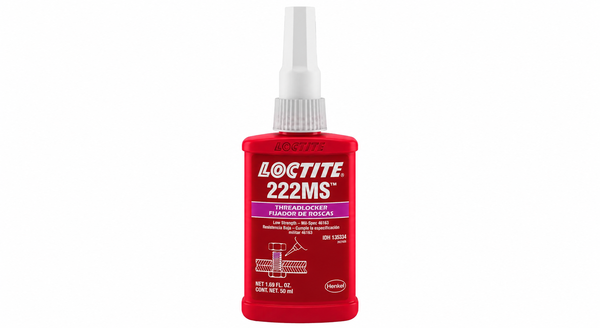

LOCTITE 222MS
Harmonization Code : 3824.99.92.97 | Prepared binders for foundry molds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included: other : other : other
Main features
- Low-Migration Thixotropic Application
- Easy Hand-Tool Disassembly
- Small-Fastener Threadlocking Control
Product Description
LOCTITE 222MS is a purple, low-strength thixotropic anaerobic threadlocker for metal fasteners that require easy disassembly with standard hand tools. The one-component liquid cures when confined between close-fitting metal threads and does not require mixing before use. Its thixotropic flow helps reduce migration after application, making it useful for adjustment screws, small-diameter fasteners, and long threaded engagement. LOCTITE 222MS also fluoresces under UV light for application inspection. Torque ranges are specific to steel, cadmium-plated, and zinc-plated fastener configurations, with cure performance dependent on substrate, temperature, and joint conditions.
Key features
- Low-migration flow: Thixotropic behavior helps the liquid remain at the applied thread area.
- Easy disassembly: Low cured strength supports removal with standard hand tools.
- Small-fastener control: The formulation is suited to adjustment screws and long-engagement fasteners.
Applications / Suitable for
- Adjustment and set screws
- Small-diameter metal fasteners
- Long-engagement fasteners requiring hand-tool disassembly
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical values for the product before cure or assembly.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Purple liquid | - | Uncured |
| Components | One | - | No mixing required |
| Cure mechanism | Anaerobic | - | Cures between close-fitting metal surfaces without air |
| Specific gravity | 1.05 | - | Typical at 25 deg C |
| Viscosity | >=5,000 | mPa s | Brookfield RVT, spindle 3, 2 rpm, Helipath, 25 deg C |
| Viscosity | 800 to 1,600 | mPa s | Brookfield RVT, spindle 3, 20 rpm, 25 deg C |
After-processing / final-state properties
Typical values for the cured product under the listed conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Breakaway torque | 3 to 9 | N m | ISO 10964; M10 steel nuts and bolts; cured 24 h at 22 deg C |
| Prevail torque | 1 to 6 | N m | ISO 10964; M10 steel nuts and bolts; cured 24 h at 22 deg C |
| Breakloose torque | 8 to 20 | N m | ISO 10964; M10 steel; pretorqued; cured 24 h at 22 deg C |
| Coefficient of thermal expansion | 80 x 10^-6 | K^-1 | ISO 11359-2; cured material |
| Thermal conductivity | 0.1 | W/(m K) | ISO 8302; cured material |
| Specific heat | 0.3 | kJ/(kg K) | Cured material |
