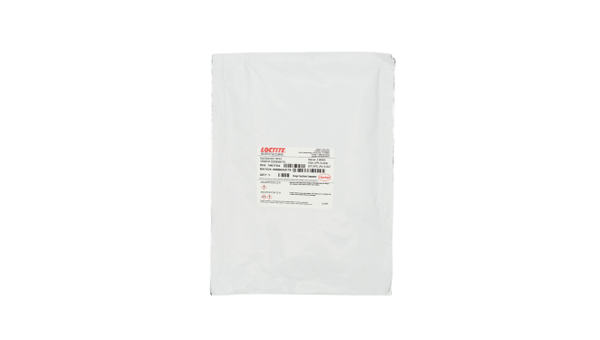

ABLESTIK FDA 22
Harmonization Code : 5906100000 | Adhesive tape of a width not exceeding 20cm
Main features
- 1.50 x 10^14 ohm-cm Volume Resistivity
- 3-Hour Working Window
- 2,100 psi Aluminum Lap Shear
Product Description
LOCTITE® ABLESTIK FDA 22 is a two-part, electrically insulating epoxy adhesive for medical-device bonding and coating applications. The tan, high-viscosity system mixes at 100:40 by weight and provides a typical pot life of 3 hours. It can be cured for 24 hours at 25°C or accelerated for 1 to 4 hours at 65°C. The cured material has a documented operating-temperature range of -70 to 145°C, typical volume resistivity of 1.50 × 1014 ohm-cm at 25°C, and aluminum-to-aluminum lap shear strength of 2,100 psi.
Key features
- Electrically insulating: Typical cured properties include volume resistivity of 1.50 × 1014 ohm-cm at 25°C and dielectric strength of 420 V/mil.
- High-viscosity epoxy system: Mixed viscosity of 28,000 cP at 25°C supports controlled application in bonding and coating processes.
- Room-temperature or heat cure: Guideline cure schedules include 24 hours at 25°C or 1 to 4 hours at 65°C.
Applications / Suitable for
- Catheters
- Hearing aids
- Dental products
- Other biomedical instruments and devices
- Bonding and coating applications
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Mechanical Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical properties and processing characteristics of the two-part adhesive before cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Technology | Epoxy | — | Two-part resin and hardener system |
| Appearance | Tan | — | Mixed adhesive |
| Mix ratio — resin:hardener | 100:40 | by weight | Resin-to-hardener ratio |
| Mixed viscosity | 28,000 | cP | At 25°C; method not stated |
| Thixotropic index | 1.2 | — | 5/50 rpm |
| Specific gravity — mixed | 1.45 | — | Mixed adhesive |
| Reactive solids content | 100 | % | Typical value |
| Pot life | 3 | hours | Test conditions and endpoint not stated |
| Cure schedule | 24 hours or 1–4 hours | — | 24 hours at 25°C or 1–4 hours at 65°C; guideline recommendations |
| Optimal storage | 27 | °C | Store unopened in a dry location; package labeling governs applicable storage information |
After-processing / final-state properties
Typical properties and performance data for the cured adhesive. Values are reference data and are not product specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Operating-temperature range | -70 to 145 | °C | Documented product range |
| Coefficient of thermal expansion | 47 | ppm/°C | Method, temperature region, and cure condition not stated |
| Hardness | 78 | Shore D | Method and cure condition not stated |
| Elongation | 5 | % | Method and cure condition not stated |
| Volume resistivity at 25°C | 1.50 × 1014 | ohm-cm | Test method and specimen configuration not stated |
| Dielectric strength | 420 | V/mil | Test method, thickness, and conditioning not stated |
| Dielectric constant | 3.5 | — | At 25°C and 1 kHz |
| Dissipation factor | 0.02 | — | At 25°C and 1 kHz |
| Lap shear strength — aluminum to aluminum | 2,100 | psi | Substrate preparation, bondline, cure condition, test method, and test temperature not stated |
