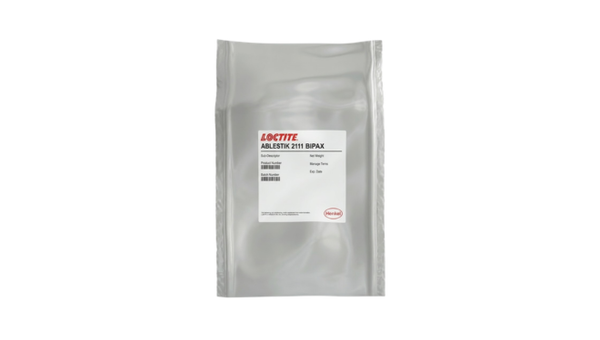

LOCTITE ABLESTIK 2111
Harmonization Code : 8529.90 | Parts solely or principally used for TV, radio, and transmission
Main features
- Thixotropic Vertical/Overhead Bonding
- 24 N/mm^2 Aluminum Lap Shear
- Glass/Metal/Plastic Substrate Compatibility
Product Description
LOCTITE ABLESTIK 2111 BIPAX is a thixotropic, two-component epoxy adhesive formulated for ease of use, with a non-drip, non-sag rheology suited to vertical and overhead assembly work. Supplied as a hazy white resin and hardener at a 100:30 mix ratio in a BIPAX mixing-dispenser package, this solvent-free system cures at room temperature over 24 hours or faster with an accelerated schedule, and supports continuous service from -70°C to 100°C. It offers good wetting, improved impact strength, and excellent thermal, mechanical shock, and environmental resistance, making it suitable for bonding, laminating, staking, repair, and manufacturing across glass, ceramic, fabric, wood, leather, most metals, and many plastics.
Key features
- Non-drip, non-sag rheology: Thixotropic formulation with good wetting for vertical and overhead applications.
- High lap shear strength: 24 N/mm² (3,500 psi) on aluminum-to-aluminum bonds.
- Broad substrate versatility: Bonds glass, ceramic, fabric, wood, leather, most metals, and many plastics.
Applications / Suitable for: Bonding, laminating, staking, repair, and manufacturing assembly applications across a wide range of substrates.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical properties of the uncured, mixed material prior to cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mix ratio (Resin : Hardener) | 100 : 30 | by weight | — |
| Viscosity, mixed | 40,000 | mPa·s (cP) | @ 25°C, spindle TF, 10 rpm |
| Specific gravity, mixed | 1.24 | — | Mixed material |
| Pot life | 40 / 20 | minutes | @ 25 g mass / @ 100 g mass, mixed |
After-processing / final-state properties
Typical properties of the fully cured material after the recommended cure schedule.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Hardness | 82 | Shore D | Cured material |
| Glass transition temperature (Tg), ultimate | 45.0 | °C | Cured material |
| Elongation | 26 | % | Cured material |
| Water absorption | 3.3 | % | After 24 hours |
| Lap shear strength, Al to Al | 24 (3,500) | N/mm² (psi) | Cured material |
