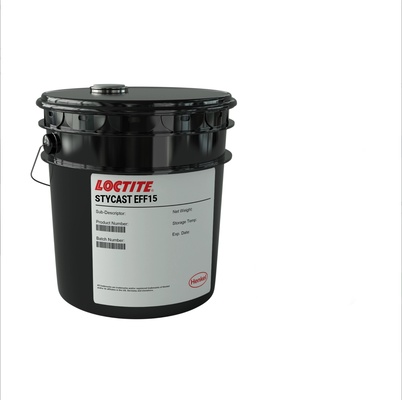

LOCTITE STYCAST EFF 15
Harmonization Code : 3907300090 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms
Main features
- Excellent dielectric properties
- Low stress
- Low shrinkage
Product Description
LOCTITE STYCAST EFF 15 is an epoxy based free flowing syntactic foam powder is designed to be able to infiltrate around densely packed components and fill voids in electronic modules.
LOCTITE STYCAST EFF 15 exhibits low shrinkage during cure so that little stress is transmitted to the embedded components. This material self extinguishes after an external flame is removed.
Cure Schedule
- 24 hours @ 100°C
- 4 hours @ 120°C
- 2 hours @ 150°C
STYCAST EFF 15
1. Select Package Type
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 35 days
Shipping in 12 weeks
Shipping in 50 days
Shipping in 35 days Shipping in 12 weeks Shipping in 50 daysTDS, SDS & Technical Documents
Technical Specifications
General Properties
Density (g)Density (g)
0.24 g/cm3Thermal Properties
Thermal ConductivityThermal Conductivity
0.12 W/m.KElectrical Properties
Dielectric StrengthDielectric Strength
7.9 kV/mm
