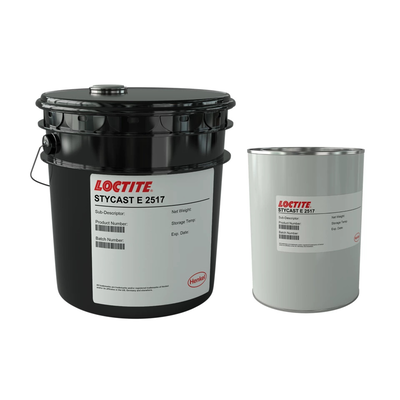

LOCTITE STYCAST E2517
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Low CTE
- Low Viscosity
- High temperature resistance
Product Description
LOCTITE® STYCAST E 2517 epoxy encapsulant is formulated for use on bare chip protection in a variety of advanced packages where ease of flow and high thermal stability are required.
Recommended Cure Schedule
- Precure 1 hour @ 120°C
- Full cure 1 hour @ 150°C
- Post cure 2 hours @ 200°C
STYCAST E2517
1. Select Package Type
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 20 days
Shipping in 12 weeks Shipping in 12 weeks Shipping in 20 daysTDS, SDS & Technical Documents
Technical Specifications
Thermal Properties
Glass Transition Temperature (Tg)Glass Transition Temperature (Tg)
220 °CThermal ConductivityThermal Conductivity
0.5 W/m.KChemical Properties
Water AbsorptionWater Absorption
0.08 %Physical Properties
ViscosityViscosity
22,500 mPa.s
