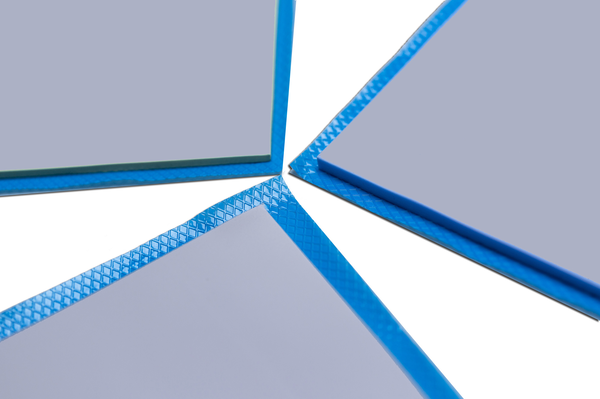

TGP 6000PT | Thermal Putty Pad

Main features

0.27 Thermal Impedance
6.0 Thermal Conductivity
0.5 - 5 mm Thickness

Product Description

Honeywell TGP 6000PT Thermally Conductive Putty Pads provide high thermal performance and excellent thermal reliability. The material’s putty-like design enables excellent gap-filling capability for applications with large dimensional variances. Special surface reinforcement enables easier handling for operators during high volume assembly. It comes contained and reinforced within single sided fiber glass and dual liners.

Honeywell TGP 6000PT is naturally tacky and requires no additional adhesive to mate to heat source and heat sink. This product can replace thermal grease and improve dripping and pump out. It is available in thicknesses ranging from 1.0mm to 5.0mm.

Need a thickness below 1mm? Then we recommend our standard Thermal gap pads.

TDS, SDS & Technical Documents

Technical Specifications

General Properties

Color

Gray

Film Thickness

1 - 5 mm

Specific Gravity

3.4

Thermal Properties

Thermal Conductivity

6.0 W/m.K

Thermal Impedance

0.27 °C·cm²/W

UL 94 Rating

V-0

Electrical Properties

Volume Resistivity

4000000000000000 Ohms⋅cm

Additional Information

Fiberglass Layer Solutions:

Since these are ultra-soft materials, handling during application presented certain challenges. To improve stability and ease of processing, multiple fiberglass reinforcement solutions was added.
We can provide below versions for customers’ consideration.

TGP6000PT: 2 layers of fiberglass
TGP6000PT-01: 1 layers of fiberglass
TGP6000PT-00: No fiberglass

Shelf Life: 12 months at 23±2˚C

Thickness range: 1.0-5.0mm with 0.25mm incremental

Thickness Tolerance: >=1mm, ±10%, 0.5-1mm, ±0.1mm
