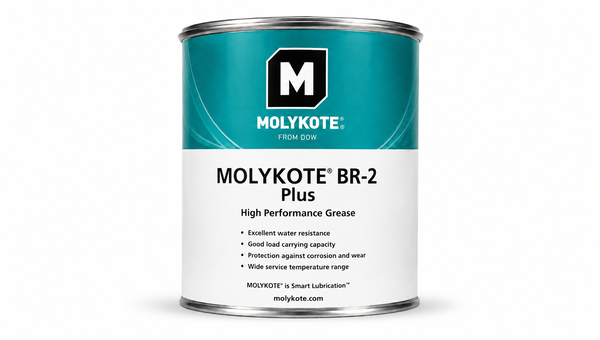

MOLYKOTE BR-2
Harmonization Code : 3403.19 | Lubricating Preparations (With 70% or More Petroleum Oils) For Automotive and Other Uses
Main features
- MoS2/Graphite Lithium Grease
- High-Load Moderate/High-Speed Lubrication
- Long-Term Industrial Lubrication
Product Description
MOLYKOTE® BR-2 Plus High Performance Grease is a lithium-soap-thickened mineral oil grease fortified with molybdenum disulfide (MoS₂) and other solid lubricants. Engineered for metal-to-metal combinations involving slow to fast movements, it functions as a heavy-duty, extreme-pressure (EP) lubricant capable of supporting medium to high loads. It offers excellent emergency running properties in mixed friction regimes, utilizing its solid lubricants and EP additives to provide essential wear protection when the hydrodynamic film is compromised.
Key features
- High load-carrying capacity: Protects heavily loaded contacts and prevents galling, demonstrating a four-ball weld load of 3,600 N and an Almen-Wieland OK load of 15,500 N.
- Robust environmental resistance: Delivers long-term lubrication with good oxidation stability, water-washout resistance, and broad corrosion protection—including specific protection against scarring (false Brinelling) and fretting corrosion.
- Clean formulation: Manufactured without intentional polytetrafluoroethylene (PTFE) or per- and polyfluoroalkyl substances (PFAS).
Applications / Suitable for
- Roller bearings, plain bearings, and ball-and-socket joints
- Sliding guides and roller guides
- Splined shafts and threaded spindles
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical Composition | Mineral oil, lithium soap, solid lubricants, EP additive, corrosion inhibitor | - | Contains molybdenum disulfide and graphite |
| Appearance / Color | Black | - | Grease |
| NLGI Consistency Class | 2 | - | DIN 51 818 |
| Base Oil Viscosity | 114 | mm²/s | at 40°C (Calculated viscosity value of base oil mixture) (DIN 51 562) |
| Worked Penetration | 265-295 | mm/10 | ISO 2137 |
| Density | 0.89 | g/ml | at 20°C (ISO 2811) |
| Flash Point | > 200 | °C | Closed cup (> 392°F) |
| Shelf Life | 60 | months | Stored between 0 and 40°C in unopened containers |
After-processing / in-service properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Service Temperature Range | -30 to 130 | °C | Up to 150°C for short periods |
| Drop Point | >= 175 | °C | ISO 2176 |
| Low-Temperature Torque (Initial) | 151 x 10^-3 | Nm | Break-away torque at -20°C (ASTM D1478-80) |
| Low-Temperature Torque (Running) | 59 x 10^-3 | Nm | After 20 minutes running time at -20°C (ASTM D1478-80) |
| Four-Ball Tester Weld Load | 3,600 | N | DIN 51 350 pt.4 |
| Four-Ball Wear Scar | 0.8 | mm | Under 800 N load (DIN 51 350 pt.5) |
| Almen-Wieland OK Load | 15,500 | N | - |
| Almen-Wieland Frictional Force | 3,150 | N | With OK load |
| FAG Rolling Element Bearing Tester | 195 | h | FE 9, 1,500/6,000/140°C, F50 (DIN 51821-02-B) |
| DN Value | 450,000 | mm/min | Calculated approximation |
| Oxidation Resistance (Pressure Drop) | 0.1 | bar | 100 hr, 99°C (DIN 51 808) |
| Corrosion Protection | 0 | - | SKF-Emcor method (DIN 51 802) |
| Oil Separation | 3.8 | % | 7 days, 40°C |
