MOLYKOTE 557
Harmonization Code : 3909.20.00.90 | Amino-resins, phenolic resins and polyurethanes, in primary forms : Melamine resins : Other
Main features
- Clear Nonstaining Wax-Like Film
- 0.07 Coefficient of Friction
- Federal Meat/Poultry Program Authorization
Product Description

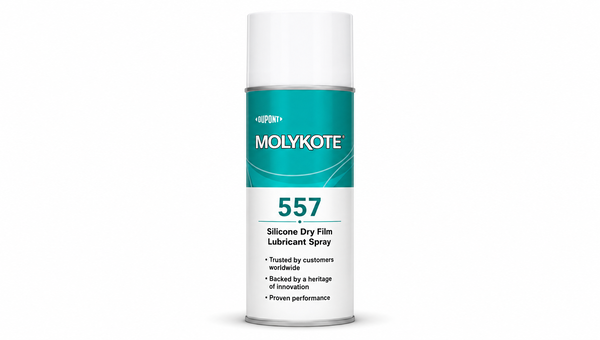

MOLYKOTE® 557 Silicone Dry Film Lubricant is an extreme-pressure, wax-like dry-film lubricant supplied in a solvent carrier (available as a bulk liquid or aerosol spray). Once applied, the solvent evaporates to leave a nearly transparent, clear wax film that adheres tenaciously to surfaces in both solid and fluid states. It provides exceptional release properties and heavy-duty lubrication, effectively reducing friction, wear, stick-slip, and metal seizure in demanding manufacturing and metalworking operations.
Key features
- Clean and nonstaining: Dries to a colorless film that will not stain paper or fabrics, and is formulated without intentional polytetrafluoroethylene (PTFE) or per- and polyfluoroalkyl substances (PFAS).
- Extreme-pressure performance: Protects heavily loaded tracks, cams, slides, and cutting tools with a four-ball weld load capacity of 1,200 N.
- Industry authorized: Authorized for use in official establishments operating under the Federal Meat and Poultry Inspection Program (formerly USDA H2 ratings) where there is no possibility of food contact.
Applications / Suitable for
- Metalworking operations: extruding, deep drawing, spinning, and increasing the life of slitter-blades, taps, dies, and drills
- Lubricating heavily loaded bearings, slides, cams, adjusting screws, guides, and ways in machine shops
- Reducing sticking and product contamination on conveyors, knives, and handling equipment in the textile, paper, woodworking, rubber, and plastic industries
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical Composition | Waxlike lubricant in solvent carrier | - | Bulk solvent is naphtha |
| Appearance / Color | Clear / Colourless | - | Supplied as liquid or aerosol spray |
| Specific Gravity (Bulk Liquid) | 0.77 | - | CTM 0137A |
| Relative Density (Aerosol) | 0.8 | - | Water = 1 |
| Flash Point (Bulk Liquid) | 39 | °C | (102°F) Bulk form only |
| Drying Time | 30 | minutes | - |
| Usable Life (Bulk Liquid) | 60 | months | Stored at or below 25°C (77°F) from date of manufacture |
| Usable Life (Aerosol Spray) | 24 | months | Stored at or below 25°C (77°F) from date of manufacture |
After-processing / in-service properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance (As Applied) | Clear wax film | - | After solvent evaporation |
| Service Temperature Range | -40 to 43 | °C | (-40 to 110 °F) Estimated based on formulation |
| Melting Range | 32 to 46 | °C | (90 to 115 °F) |
| Coefficient of Friction | 0.07 | - | Tested on Falex LFW-4 Press Fit tester, steel vs. steel |
| Press Fit Performance | No stick-slip | - | Falex LFW-4 Press Fit tester, steel vs. steel, Rc60, 12,000 psi |
| Four Ball Weld Load | 1,200 | N | ASTM D2596 |
| Four Ball Wear Scar | 0.85 | mm | Fed Std 791a, Method 6514.1 |
