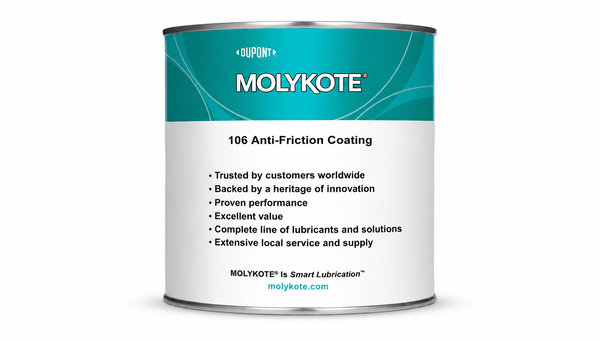

MOLYKOTE 106
Harmonization Code : 3909.20.00.90 | Amino-resins, phenolic resins and polyurethanes, in primary forms : Melamine resins : Other
Main features
- Heat-Curing Dry Film Lubricant
- High-Load Coating Application
- 70 to 250 deg C Service Range
Product Description
MOLYKOTE® 106 Anti-Friction Coating is a heat-curing, solvent-based dry film lubricant containing solid lubricants such as molybdenum disulfide and graphite dispersed in an organic binder. Formulated as a dark gray liquid, it cures to provide maintenance-free, permanent dry lubrication for metal-to-metal combinations. It is ideal for highly stressed friction combinations involving slow speeds or oscillating movements, especially where traditional oils and greases are unsuitable or where the risk of soiling must be avoided.
Key features
- High load-carrying capacity: Withstands extreme contact pressures, exhibiting a Falex load capacity of 14,500 N on phosphatized surfaces.
- Low coefficient of friction: Delivers excellent wear protection and low friction without the use of intentional polytetrafluoroethylene (PTFE) or per- and polyfluoroalkyl substances (PFAS).
- Extreme temperature resistance: Maintains reliable dry lubrication across a broad service temperature range from -70°C to 250°C.
Applications / Suitable for
- Dry lubrication of locks, hinges, joints, and magnetic armatures
- Anti-seizure coating for engine and gear components
- Highly stressed metal-to-metal friction combinations with low speeds or oscillating operation
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical Composition | Solid lubricants, organic binder, solvent | - | Contains molybdenum disulfide and graphite |
| Physical State / Appearance | Dark gray | - | Liquid |
| Viscosity (Efflux Time) | 37 | s | at 20°C (ISO4 cup, DIN EN ISO 2431) |
| Kinematic Viscosity | > 20.5 | mm²/s | at 25°C (77°F) |
| Density | 1.16 | g/ml | at 20°C (DIN 53217/2) |
| Flash Point | 29.5 | °C | Closed cup (DIN ISO 2619) (85.1 °F) |
| Usable Life | 36 | months | Stored between 0 and 40°C in unopened containers |
After-processing / in-service properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Recommended Dry-Film Thickness | 5 to 20 | µm | - |
| Curing Time | 60 | minutes | at 150°C (object temperature) |
| Curing Time (Alternative) | 30 | minutes | at 180°C (object temperature) |
| Service Temperature Range | -70 to 250 | °C | - |
| Falex Load-Carrying Capacity | 14,500 | N | Phosphatized surface |
| LFW-1 Wear (Rotating) | 478 | N | Revolutions x 1,000 to µ=0.1 (F=2,860 N, n=72 rpm, v=7.9 m/min, phosphatized) (ASTM D2714) |
| LFW-1 Wear (Oscillating) | 292 | N | Oscillations x 1,000 to µ=0.08 (F=900 N, frequency=89.5 osc./min, phosphatized) (ASTM D2714) |
