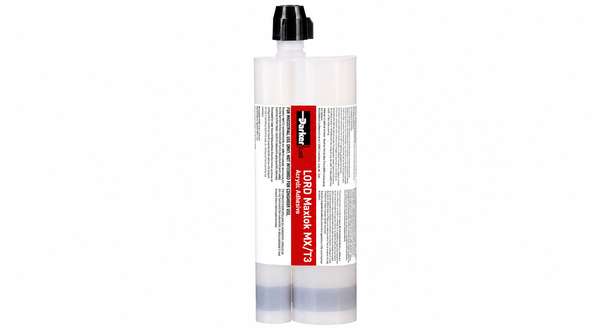

LORD MAXLOK MX/T3S
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Minimal-Preparation Metal Bonding
- Fast 6- to 8-Minute Handling
- Controlled Non-Sag Bondline
Product Description
LORD Maxlok MX/T3S is a two-part acrylic adhesive system that combines T3S adhesive with MX accelerator for bonding a wide range of metals with minimal surface preparation. Mixed at 1:4 adhesive-to-accelerator by volume, the system provides a 3 to 5 minute working time and reaches 50 psi shear handling strength in 6 to 8 minutes at 25 deg C. Its non-sag consistency supports vertical and overhead application, while 0.010 in (0.025 cm) glass beads help control bondline thickness. After cure, the adhesive performs from -40 to 149 deg C and resists moisture, salt spray, weathering, oils, solvents, dilute acids, alkalis, and indirect UV exposure.
Key features
- Rapid handling strength: Reaches 50 psi shear handling strength in 6 to 8 minutes at 25 deg C after a 3 to 5 minute working time.
- Controlled non-sag application: Remains in position on vertical and overhead surfaces, with glass beads for 0.010 in bondline control.
- Wide-temperature resistance: Performs from -40 to 149 deg C with resistance to moisture, salt spray, weathering, and indirect UV exposure.
Applications
Replacing welding, brazing, riveting, and other mechanical fastening methods in assemblies exposed to high impact, high peel loads, or broad temperature environments.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Additional Information
As-Supplied / Before-Processing Properties
Values are typical and not for specification purposes. T3S adhesive, MX accelerator, and mixed-system properties are identified separately.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| T3S adhesive appearance | Off-white to tan paste | - | As supplied |
| T3S adhesive viscosity | 70,000 to 200,000 | cP | Brookfield at 77 deg F (25 deg C) |
| T3S adhesive density | 8.25 to 8.75 | lb/gal | 989 to 1048 kg/m^3 |
| MX accelerator appearance | Grey paste | - | As supplied |
| MX accelerator viscosity | 100,000 to 500,000 | cP | Brookfield at 77 deg F (25 deg C) |
| MX accelerator density | 11.45 to 12.15 | lb/gal | 1372 to 1456 kg/m^3 |
| Mix ratio | 1:4 | Adhesive:accelerator | By volume |
| Solids content | 100 | % | Adhesive mixed with recommended accelerator |
After-Processing / Final-State Properties
MX/T3S processing values are typical. Service and resistance characteristics are stated for the Maxlok MX/T3S, MX/T6S, and MX/T18S series.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Time to handling strength | 6 to 8 | min | At 77 deg F (25 deg C); 50 psi shear |
| Complete cure | 24 | h | At room temperature; mating surfaces held in contact during cure |
| Service temperature range | -40 to 149 | deg C | Cured adhesive; equivalent source range -40 to 300 deg F |
| Bondline control | 0.010 | in | Glass bead diameter; 0.025 cm |
| Environmental resistance | Dilute acids, alkalis, solvents, greases, oils, moisture, salt spray, and weathering | Qualitative | Cured adhesive |
| Indirect UV resistance | Excellent | Qualitative | Cured adhesive under indirect UV exposure |
