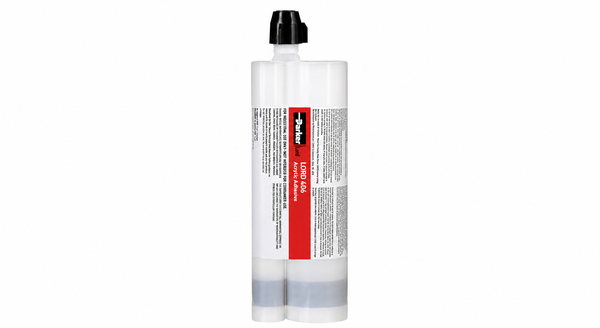

LORD 406E
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- High-Impact and Peel Performance
- 6-10 Minute Working Time
- Minimal Metal Surface Preparation
Product Description
LORD 406E Acrylic Adhesive is a non-sag acrylic adhesive component used with LORD Accelerator 17, 19, or 19GB for structural bonding of metals and engineered plastics. The off-white to tan paste has a typical viscosity of 100,000 to 300,000 mPa s at 25 deg C and remains in position on vertical or overhead surfaces. With a recommended accelerator, the mixed system provides a 6 to 10 minute working time, 12 to 17 minute handling-strength time, and 24 hour full cure at 24 deg C. The cured system is formulated for high-impact and high-peel applications from -40 to 149 deg C.
Key features
- High-Impact Acrylic Bonding: Supports bonded assemblies exposed to impact and peel loading.
- 6-10 Minute Working Time: Provides a controlled assembly window when mixed with a recommended accelerator.
- Non-Sag Application: Remains in position on vertical and overhead surfaces.
Applications
Applications include structural bonding of prepared or minimally prepared metals and engineered plastics in assemblies requiring impact or peel resistance.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Additional Information
Adhesive component properties
Accelerator selection changes the required mix ratio and the applicable cured-property set.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Off-white to tan paste | As supplied | |
| Viscosity | 100,000 to 300,000 | mPa s | 25 deg C, Brookfield |
| Density | 9.10 to 9.70 | lb/gal | 25 deg C |
| Flash point | 15 | deg C | Closed-cup value |
| Mix ratio with Accelerator 17 | 10:1 | by volume | Adhesive : accelerator |
| Mix ratio with Accelerator 19 or 19GB | 4:1 | by volume | Adhesive : accelerator |
Mixed and cured adhesive properties
Cured mechanical values shown here apply to LORD 406 with Accelerator 19 under the documented test conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Working time | 6 to 10 | min | 24 deg C, mixed with a recommended accelerator |
| Handling-strength time | 12 to 17 | min | 24 deg C, 0.41 MPa shear criterion |
| Full-cure time | 24 | h | 24 deg C |
| Tensile strength | 18.6 | MPa | Cured with Accelerator 19 |
| Elongation at break | 30 | % | Cured with Accelerator 19 |
| Glass transition temperature | 72 | deg C | Cured with Accelerator 19 |
| Service temperature range | -40 to 149 | deg C | Complete adhesive system |
