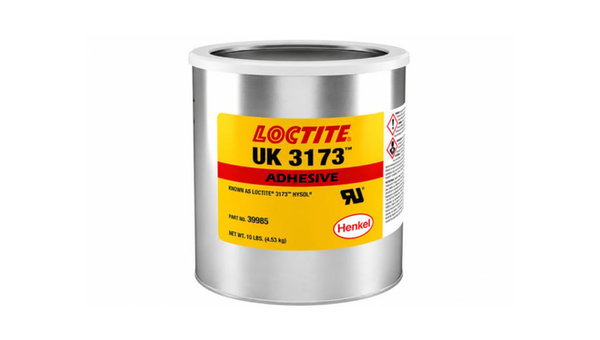

LOCTITE UK3173 | Krayden

Main features

Low-Viscosity Resin Handling
45-Minute System Work Time
Flame-Retardant Potting System

Product Description

LOCTITE UK 3173 Polyurethane Potting Resin is the low-viscosity polyurethane resin component of the LOCTITE UK 3173 / UK 3184 potting system. The clear to dark-brown resin has a typical viscosity of 75 mPa s at 25 deg C and is mixed with UK 3184 hardener at 1:4.8 by volume or 15:85 by weight. The combined material has a mixed viscosity of 2,250 mPa s, a 45 minute work time, and a 24 hour room-temperature cure. The resulting flame-retardant potting compound is used for encapsulation where controlled flow, electrical insulation, and a Shore A 80 cured material are required.

Key features

Low-Viscosity Resin Component: The UK 3173 resin has a typical viscosity of 75 mPa s at 25 deg C.
Defined UK 3184 Mix Ratio: Uses 1:4.8 by volume or 15:85 by weight with the specified hardener.
Room-Temperature Potting Cure: The complete system cures in 24 hours at 25 deg C.

Applications

Applications include potting and encapsulation using the complete LOCTITE UK 3173 / UK 3184 resin-hardener system.

TDS, SDS & Technical Documents

Technical Specifications

Physical Properties

Viscosity

2,250 mPa.s

Viscosity (Part A)

75 mPa.s

Viscosity (Part B)

14,000 mPa.s

General Properties

Appearance

Opaque tan

Chemistry Type

Polyurethane

Mix Ratio

15 to 85

Specific Gravity

1.40

Work life @25°C

0.75 hours

Thermal Properties

Glass Transition Temperature (Tg)

-15 °C

Electrical Properties

Dielectric Strength

14,57 kV/mm

Volume Resistivity

6.61×10^12 Ohms⋅cm

Additional Information

Technical properties

Resin properties

Values apply to the LOCTITE UK 3173 resin component before mixing.

Property	Value	Unit	Method / condition
Chemical type	Polyurethane resin		UK 3173 component
Appearance	Clear to dark brown		As supplied
Viscosity	75	mPa s	25 deg C, Brookfield, spindle 1, 20 rpm
Specific gravity	1.23 to 1.24		25 deg C
