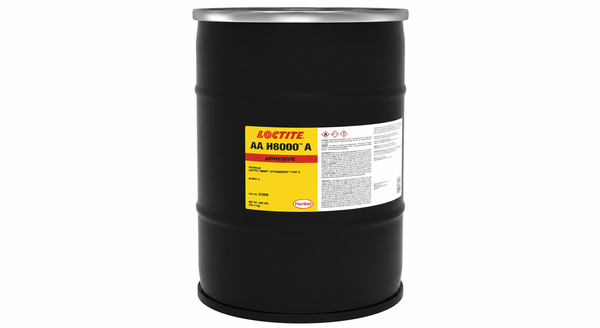

LOCTITE H8000
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Visible 10:1 Mix Confirmation
- 30-Minute Assembly Window
- Resilient Peel and Impact Performance
Product Description
LOCTITE AA H8000 is a two-component, non-sag methacrylate structural adhesive for metals, plastics and composites. Yellow resin and blue hardener mix at 10:1 by volume to create a green adhesive that visibly indicates mixed material. At 25 deg C, the mixed adhesive has a typical cone-and-plate viscosity of 8,850 mPa s and a 30 minute working time on steel, aluminum and polyethylene. Fixture time on grit-blasted mild steel is typically 25 to 30 minutes. The cured adhesive combines resilient bonding with peel, impact and lap-shear performance across specified substrates.
Key features
- Visible green mix: Yellow resin and blue hardener produce a green mixed adhesive for process confirmation.
- 30-minute working time: The mixed system provides a 30 minute assembly window at 25 deg C on the stated substrates.
- Non-sag structural bonding: The methacrylate system supports controlled application on metals, plastics and composites.
Applications
Applications include structural bonding of metals, plastics and composites, including steel, aluminum, stainless steel, FRP, gelcoat and ABS.
TDS, SDS & Technical Documents
Technical Specifications
Physical Properties
General Properties
Mechanical Properties
Thermal Properties
Curing Conditions
Additional Information
As-supplied properties
Part A, Part B and mixed-system values before cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Part A appearance | Yellow | Resin component | |
| Part B appearance | Blue | Hardener component | |
| Mixed appearance | Green | After 10:1 volume mixing | |
| Mix ratio by volume | 10:1 | Part A to Part B | |
| Part A viscosity | 6,700 | mPa s | Cone CP50-1, shear rate 50 s^-1, 25 deg C |
| Part B viscosity | 6,530 | mPa s | Cone CP50-1, shear rate 50 s^-1, 25 deg C |
| Mixed viscosity | 8,850 | mPa s | Cone CP50-1, shear rate 50 s^-1, 25 deg C |
| Working time | 30 | minutes | At 25 deg C on steel, aluminum and polyethylene |
Final-state properties
Physical properties and cured adhesive performance; cure conditions are listed per row where stated.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Glass transition temperature | 71 | deg C | ISO 11359-2 |
| Shore hardness | 70 | Shore D | ISO 868 |
| Elongation at break | 13 | % | ISO 527-2 |
| Tensile strength at break | 15 | N/mm^2 | ISO 527-2 |
| Tensile modulus | 1,080 | N/mm^2 | ISO 527-2 |
| Impact strength | 23 | J | ISO 9653, grit-blasted mild steel, cured 72 hours at 22 deg C |
| T-peel strength | 8 | N/mm | ISO 11339, steel, cured 72 hours at 22 deg C |
| Lap shear strength | 24 | N/mm^2 | Grit-blasted mild steel, cured 72 hours at 22 deg C |
