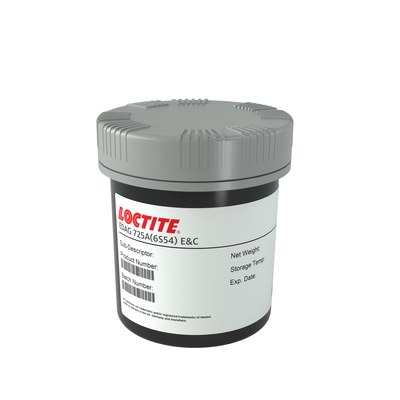

LOCTITE EDAG 725A(6S54) E&C
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Print Conductive circuits
- No thinning required
- Excellent adhesion
Product Description
LOCTITE EDAG 725A(6S54) E&C electrically conductive ink is designed for use in the production of low voltage circuitry on polyester films. It has optimum conductivity that can be used in high capacity crossovers and is ideal to print the conductive part of flexible circuits.
LOCTITE EDAG 725A(6S54) is a heat curable conductive thermoplastic with low electrical resistance that requires no thinning. It exhibits excellent adhesion and flexibility while also offering good printability, screen residence time and shelf life.
LOCTITE EDAG 725A(6S54) is typically used for Membrane keyboards, membrane touch switches and flexible circuits while also being able to operate at a temperature of 100°C
Drying Cycle
- 15 minutes @ 120°C
LOCTITE EDAG 725A
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 93 days
Shipping in 12 weeks
Shipping in 25 daysTDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
Optimal Storage : 4 to 8 °C
TYPICAL SCREEN PRINTING PROCESS
Emulsion Thickness
-Solvent resistant emulsion , μm 10 to 40
Recommended Squeegee
-Shore Hardness 70 to 80
Recommended Screen Type
-Monofilament polyester screen, threads/cm 64 to 80
-Stainless steel screen , threads/cm 68 to 130
Printing Equipment Type
-Manual
-Semi-automatic
-High speed reel-to-reel
