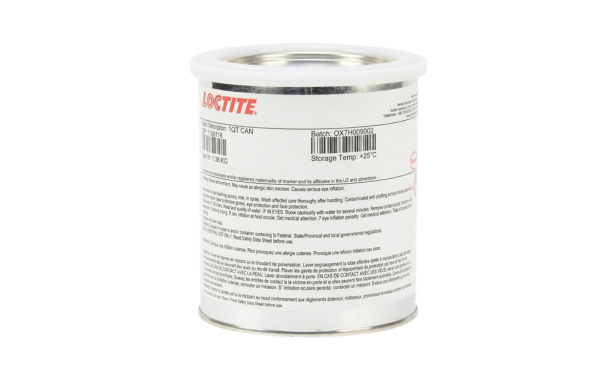

LOCTITE EA 2000
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Low-VOC Water-Based Nitrile-Phenolic Primer
- Blue-to-Blue-Green Color Change
- BMS 5-42 Type 3 Qualification
Product Description
LOCTITE EA 2000 AERO is a heat-curing, water-based nitrile-phenolic primer for anodized aluminum used with nitrile-phenolic film adhesives. The dark-blue liquid can be applied by conventional or airless spray and changes to blue-green during cure, providing a visual indication of the processed primer layer. Its low-VOC formulation contains 15 g/L VOC and is qualified to Boeing BMS 5-42, Type 3. When applied and cured under the documented conditions, the primer provides chemical and water resistance and supports metal-to-metal bonding performance across temperatures from -67°F to 250°F (-55°C to 121°C).
Key features
- Water-based, low-VOC formulation: Contains 15 g/L VOC and uses distilled or deionized water as the thinner.
- Visual cure indication: Changes from dark blue to blue-green when cured.
- Aerospace qualification: Qualified to Boeing BMS 5-42, Type 3.
Applications / Suitable for
- Priming acid-etched and phosphoric-acid-anodized aluminum
- Use with nitrile-phenolic film adhesives
- Spray-applied primer layers for aerospace metal bonding
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
Typical liquid-primer properties and storage data. Values are provided for reference and are not specification limits.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Base | Nitrile rubber, phenolic resin | — | As supplied |
| Color | Dark blue | — | As supplied |
| Viscosity | 800–2,500 | cP | Brookfield RVT, spindle #2 at 20 rpm |
| Weight per gallon / density | 8.45 / 1.01 | lb/gal / kg/L | Typical |
| Total solids by weight | 10–14 | % | Typical |
| VOC content | 15 | g/L | Reported product feature |
| Calculated coverage | 200 / 4.9 | ft²/gal/mil / m²/L/0.0254 mm | Calculated coverage |
| Dry time | 25–45 | min | 1 mil wet film at 73°F (23°C) and 50% RH |
| Shelf life | 12 | months | Stored at 40–60°F (4–16°C); 12 months at 50°F (10°C). Do not freeze. |
After-processing / final-state properties
Mechanical results were generated on aluminum specimens prepared and tested to Boeing BMS 5-42, Class 1 requirements. The primer was applied at 0.3 mil dry-film thickness and cured for 90 minutes at 315°F (157°C). Values are typical and not specification limits.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Cured color | Blue-green | — | Color changes from blue during cure |
| Metal-to-metal lap shear | 3,165 | psi | Tested at -67°F (-55°C) |
| Metal-to-metal lap shear | 4,200 | psi | Tested at 77°F (25°C) |
| Metal-to-metal lap shear | 1,800 | psi | Tested at 180°F (82°C) |
| Metal-to-metal lap shear | 1,500 | psi | Tested at 250°F (121°C) |
| Metal-to-metal climbing peel | 100 | in-lb/in | Tested at 77°F (25°C) |
