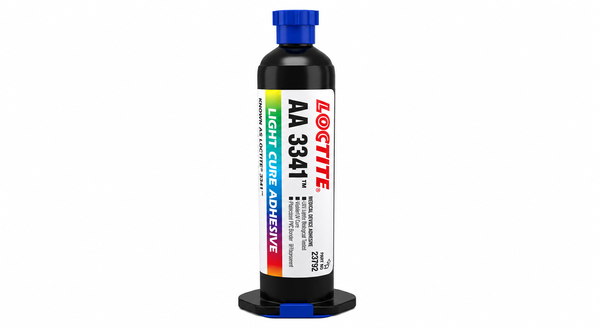

LOCTITE 3341
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Fast UV/Visible-Light Fixturing
- Flexible Plastic Bonding
- UV-Fluorescent Presence Inspection
Product Description
LOCTITE AA 3341 is a one-component, low-viscosity acrylated urethane adhesive for UV/visible-light bonding and potting. It is formulated primarily for heavily plasticized PVC and also bonds polycarbonate and ABS. The transparent light-yellow liquid requires no mixing, fluoresces under UV light for presence inspection, and develops fixture strength in about 5 seconds under the specified 365 or 405 nm light conditions. After cure, the flexible material has 220% elongation and a 6.2 N/mm^2 block-shear result on polycarbonate-to-PVC assemblies at the stated cure condition. Applications include plastic bonding and disposable medical-device assembly.
Key features
- Fast Light Fixture: Fixture strength develops in about 5 seconds under several listed 365 or 405 nm exposure conditions.
- Flexible Cured Bond: A 220% elongation value provides a flexible cured material under the specified cure.
- UV-Fluorescent Inspection: Positive UV fluorescence aids visual confirmation of adhesive presence.
Applications / Suitable for
- Bonding heavily plasticized PVC
- Bonding polycarbonate and ABS
- Disposable medical-device assembly
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Chemical Properties
Mechanical Properties
Electrical Properties
Physical Properties
Curing Conditions
Additional Information
As-supplied / before-processing properties
Typical values for the uncured or as-supplied product unless otherwise noted.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Transparent light yellow | - | Uncured |
| UV fluorescence | Positive | - | Uncured material under UV light |
| Specific gravity | 1.09 | - | 25 deg C |
| Viscosity | 525 | mPa s | Brookfield RVT, spindle 1, 10 rpm, 25 deg C |
After-processing / final-state properties
Typical values for the cured product under the listed methods and conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Shore hardness | 27 | Durometer D | ISO 868; cured 30 seconds at 30 mW/cm^2 and 400 nm |
| Elongation at break | 220 | % | ISO 527-3; same cure |
| Tensile strength at break | 15 | N/mm^2 | ISO 527-2; same cure |
| Tensile modulus | 25 | N/mm^2 | ISO 527-3; same cure |
| Block shear strength | 6.2 | N/mm^2 | ISO 13445; polycarbonate to PVC; same cure |
| Dielectric breakdown strength | 31.5 | kV/mm | Cured material |
