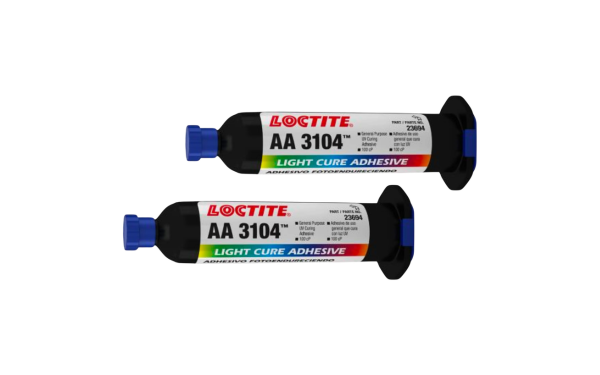

LOCTITE 3104
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- UV/Visible-Light Adhesive Cure
- Direct PVC-to-Polycarbonate Bonding
- Low-Viscosity Adhesive Application
Product Description
LOCTITE® AA 3104™ is a one-component UV and visible light-curing acrylic adhesive designed primarily for bonding rigid or flexible PVC to polycarbonate. The transparent liquid formulation cures rapidly upon exposure to ultraviolet or visible light, enabling high-speed manufacturing processes and efficient assembly operations. Its low-viscosity characteristics allow easy application in close-fitting assemblies, while the cured adhesive provides flexibility that enhances load-bearing and shock-absorbing performance. LOCTITE AA 3104 demonstrates excellent adhesion to a broad range of substrates including polycarbonate, PVC, glass, many plastics and most metals.
Key Features & Benefits
- UV and visible light-curing adhesive for rapid production processing.
- Specifically developed for bonding PVC to polycarbonate.
- Transparent formulation for aesthetically clean bond lines.
- Low-viscosity adhesive supports easy dispensing and wetting.
- Flexible cured bond enhances shock absorption and load distribution.
- One-component system requiring no mixing.
- Excellent adhesion to plastics, glass and metal substrates.
Recommended Applications
- Polycarbonate-to-PVC bonding.
- Joining flexible PVC tubing to polycarbonate components.
- Transparent plastic assembly applications.
- Glass-to-plastic and plastic-to-metal bonding.
- High-speed manufacturing processes utilizing UV curing systems.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Additional Information
As-Supplied / Before-Processing Properties
| Property | Value | Unit | Condition |
|---|---|---|---|
| Technology | Acrylic | — | UV / Visible Light Cure |
| Chemical Type | Acrylated Urethane | — | One-component adhesive |
| Appearance | Transparent Liquid | — | Uncured |
| Components | One Component | — | No mixing required |
| Viscosity | 90 - 210 | mPa·s (cP) | Brookfield RVT, 25°C |
| Specific Gravity | 1.13 | — | 25°C |
| Refractive Index | 1.48 | — | ASTM D542 |
| Fixture Time | <5 to 15 | seconds | Depending on light source and intensity |
After-Processing / Final-State Properties
| Property | Value | Unit | Condition / Method |
|---|---|---|---|
| Tensile Strength at Break | 19 | N/mm² | ISO 527-3 |
| Tensile Modulus | 738 | N/mm² | ISO 527-3 |
| Elongation at Break | 50 | % | ISO 527-3 |
| Shore Hardness | 69 | Shore D | ISO 868 |
| Refractive Index | 1.51 | — | ASTM D542 |
| Lap Shear Strength (Polycarbonate to PVC) | 9.78 | N/mm² | Initial strength |
| Lap Shear Strength (Polycarbonate to Polycarbonate) | 21.8 | N/mm² | Initial strength |
| Dielectric Breakdown Strength | 34 | kV/mm | IEC 60243-1 |
| Volume Resistivity | 0.92 × 10¹⁵ | Ω·cm | IEC 60093 |
