PIT5S | 5-mil Polyimide (Kapton) Tape with Silicone Adhesive
Harmonization Code : 3919.90.80.99 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
- 5 mil polyimide film
- Silicone adhesive
- >18000V breakdown voltage
Product Description
LINQTAPE™ PIT5S-Series is a high performance, high-temperature resistant, pressure sensitive polyimide tape designed for permanent bonding in many high temperature applications. These applications include but are not limited to semiconductor, smartcard, electronic, automotive and general manufacturing industries.
LINQTAPE™ PIT5S-Series provides an excellent balance of electrical, mechanical, thermal, and chemical properties over a wide range of temperatures. It can be used in applications that may see temperatures up to 260°C (500°F).

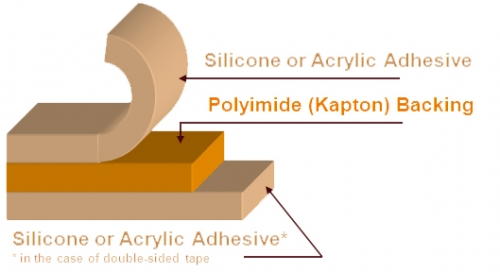

LINQTAPE™ PIT5S-Series comes in 33 meter (36 yard) length rolls of varying widths. The base polyimide film (backing) thickness is 5 mil (127 ± 2µm) thick and the total thickness including the adhesive layer is approximately 7 mil (177.8 ± 6µm).
LINQ PIT5S
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Other Properties
Mechanical Properties
Electrical Properties
Additional Information
