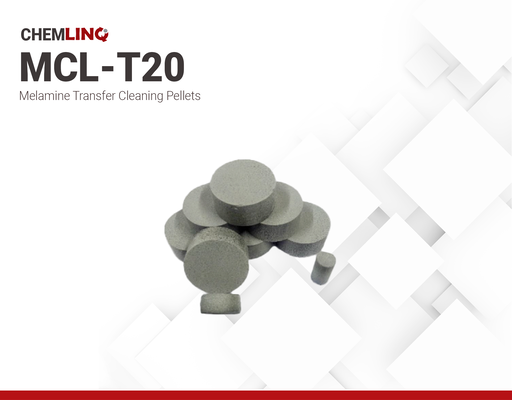

MCL-T20 | Melamine Transfer Cleaning Pellets
Harmonization Code : 3909.20.00.90 | Amino-resins, phenolic resins and polyurethanes, in primary forms : Melamine resins : Other
Main features
- Excellent Cleaning Efficiency
- Ideal for High-Precision Industries (Electronics and Automotive)
- Enhanced Mold Lifespan and Minimized Downtime
Product Description
CHEMLINQ MCL T20 is a mold cleaning compound tablet composed of melamine resin, silica filler, and other additives. The material is designed for the meticulous cleaning of metal mold dies in transfer molding processes. It effectively removes organic and inorganic residues and stains from mold dies used in transfer molding. Moreover, MCL T20 revitalizes mold surfaces, ensuring optimal performance and prolonging the operational lifespan of molds. Ideal for industries requiring precision and reliability in molding processes.
CHEMLINQ MCL T20 can be used alone or partnered with cleaning rubber sheets to enhance cleaning performance.
Product Key Features
- Effective Residue Removal — Meticulously cleans metal mold dies, eliminating both organic and inorganic residues and stains, prolonging the lifespan of metal molds..
- Can be used in conjunction with cleaning rubber sheets for improved cleaning effectiveness.
Applications
- Cleaning metal molds for transfer molding processes.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
| Recommended molding parameters | |||
| Mold Condition | Conventional | Auto | Unit |
| Mold temperature | 160-190 | 160-190 | ℃ |
| Preheating | - | 0-10 | sec |
| 90-110 | - | ℃ | |
| Transfer pressure | 30-140 | 90-110 | kgf/cm2 |
| Transfer time | 20-40 | 8-25 | sec |
| Curing time | 5-15 | 4-10 | min |
Preparation Instructions
1. Ensure the mold temperature is appropriate for cleaning, typically around the operating temperature of the mold. Make sure the mold is free from any significant debris or loose contaminants.
2. Place the MCL-T20 tablets into the mold cavity. The number of tablets depends on the size of the mold and the level of contamination.
3. Close the mold and initiate a standard transfer molding cycle. This includes applying the necessary pressure and heat to activate the cleaning compound. The heat and pressure help the MCL-T20 tablets to flow across the mold surfaces, effectively loosening and removing organic and inorganic residues.
4. After the cycle is complete, open the mold and eject the cleaning compound residue. Inspect the mold for any remaining contaminants. If necessary, repeat the process using additional tablets or in combination with other cleaning methods, such as CHEMLINQ RCS rubber cleaning sheets.
5. Perform a final inspection to ensure all residues are removed.
Storage and Handling
1. The cleaning compound is sealed in PE bags, with 10 kg per carton.
2. Ensure the product stays dry, as high humidity can cause curing failures in the cleaning compound. Keep the product away from heat sources, as excessive heat can make the cleaning compounds ineffective.
3. Store the product below 25 °C. If taken from a cold room or refrigerator, thaw it in the sealed package for 18 to 24 hours until it reaches room temperature.
4. The shelf life is 6 months if stored at temperatures ≤ 25 °C and 12 months at temperatures ≤10 °C.
