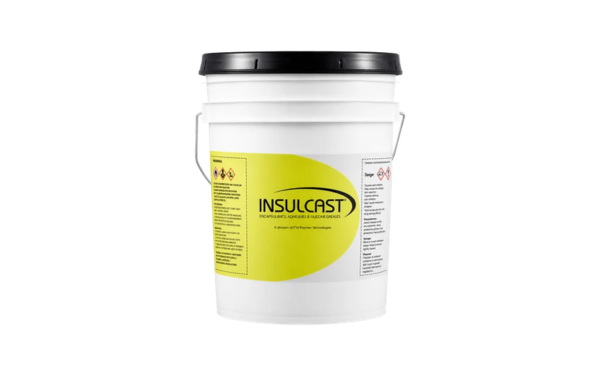

INSULCAST 502
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Low-Viscosity Encapsulation Application
- Room-Temperature Encapsulation Cure
- 200 to 300 cP Mixed Viscosity
Product Description
INSULCAST® 502 Epoxy Casting Resin is a clear, unfilled, low-viscosity epoxy resin for general-purpose casting, electrical encapsulation, and impregnation. The resin may be combined with INSULCURE 9 for room-temperature processing or INSULCURE 11B for heat-cure systems with higher temperature capability. Typical resin viscosity is 700 cP at 25°C, while mixed viscosity is approximately 200 cP with INSULCURE 9 or 300 cP with INSULCURE 11B. The selected hardener determines pot life, cure schedule, heat-distortion point, service range, and final mechanical properties.
Key features
- Low-viscosity clear resin: Typical resin viscosity is 700 cP at 25°C.
- Two hardener pathways: INSULCURE 9 supports room-temperature cure, while INSULCURE 11B supports heat cure and higher temperature use.
- Electrical insulation: Typical cured volume resistivity is 2 × 10¹⁵ ohm·cm for both documented systems.
Applications / Suitable for
- General-purpose casting
- Electrical encapsulation
- Coil and transformer impregnation
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical as-supplied or processing-state values unless otherwise stated. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Resin color | Clear | N/A | INSULCAST 502 |
| Resin viscosity | 700 | cP | At 25°C |
| Resin specific gravity | 1.13 | N/A | At 25°C |
| Mix ratio with INSULCURE 9 | 100:13 | parts by weight | Resin : hardener |
| Mixed viscosity with INSULCURE 9 | 200 | cP | At 25°C |
| Pot life with INSULCURE 9 | 45 | min | 100 g mass at 25°C |
| Mix ratio with INSULCURE 11B | 100:18 | parts by weight | Resin : hardener |
| Pot life with INSULCURE 11B | 5 | h | 100 g mass at 25°C |
After-processing / final-state properties
Typical cured or final-state values under the stated system and test conditions. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Hardness | 85 | Shore D | With INSULCURE 9 |
| Hardness | 87 | Shore D | With INSULCURE 11B |
| Tensile strength | 74 | MPa | With INSULCURE 9 |
| Tensile strength | 76 | MPa | With INSULCURE 11B |
| Heat-distortion point | 85 | °C | With INSULCURE 9 |
| Heat-distortion point | 155 | °C | With INSULCURE 11B |
| Dielectric strength | 425 to 435 | V/mil | Depending on hardener |
| Volume resistivity | 2 × 10¹⁵ | ohm·cm | Both documented systems |
