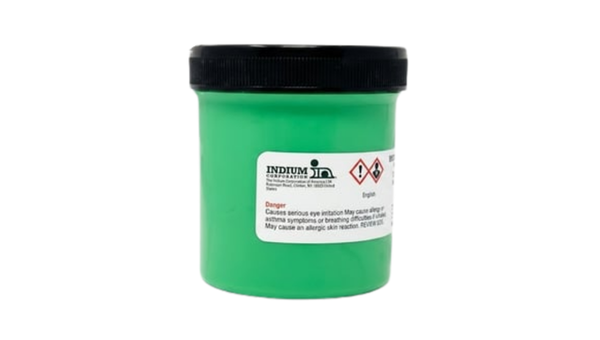

INDIUM 10.8HF
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- Broad Air-Reflow Process Window
- Low-Voiding QFN and BGA
- Halogen-Free ROL0 Flux System
Product Description
Indium10.8HF Pb-Free Solder Paste is a halogen-free, no-clean lead-free solder paste for surface-mount printing and air reflow. The ROL0 flux system supports broad lead-free process windows, high transfer efficiency, and controlled coalescence across Type 3, Type 4, Type 5, and T5-MC powder options. It is formulated for low voiding in QFN and BGA joints and leaves a clear residue after reflow. Under the stated shop conditions, stencil life extends up to 12 hours. Applications include lead-free SMT stencil printing and reflow where the ordered alloy, powder size, storage condition, and thermal profile are specified.
Key features
- Broad Reflow Profile Window: The flux system supports lead-free air-reflow processing across documented profile conditions.
- Low-Voiding QFN/BGA Reflow: The paste is formulated for low voiding in QFN and BGA solder joints.
- Clear Post-Reflow Residue: The no-clean flux leaves a clear residue after the documented reflow process.
Applications / Suitable for
- Lead-free SMT stencil printing
- QFN and BGA assembly
- Air reflow with the ordered alloy and powder configuration
Technical Specifications
Other Properties
Additional Information
As-supplied / before-processing properties
Typical pre-reflow values for Indium10.8HF; alloy, powder, package, storage, and environmental conditions are identified where they affect the value.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Flux classification | ROL0 | IPC J-STD-004D | |
| Typical viscosity | 1,400 | kcps | Type 4 and Type 4.5 powder |
| Metal load | 89 | % | Type 4 and Type 4.5 powder |
| Metal load | 88.0 to 88.5 | % | Type 5 and T5-MC powder |
| Stencil life | up to 12 | hours | 30 to 60% RH at 22 to 28 deg C |
| Shelf life | 6 | months | Syringe stored below -10 deg C |
| Shelf life | 6 | months | Jar or cartridge stored below 10 deg C |
| Halogen limits | less than 900 Cl; less than 900 Br; less than 1,500 total | ppm | IEC 61249-2-21; EN14582 |
