Hysol GR2320 | Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- For MnO Tantalum Capacitors
- Black colored
- Halogen-free version of MG33F-0602 & MG33F-0593
Product Description

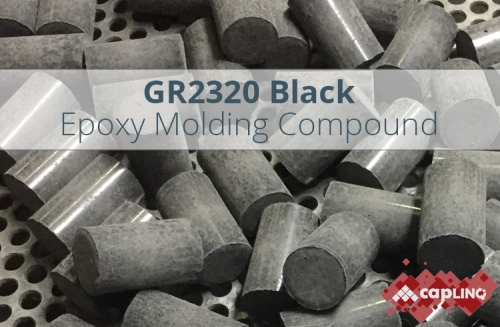

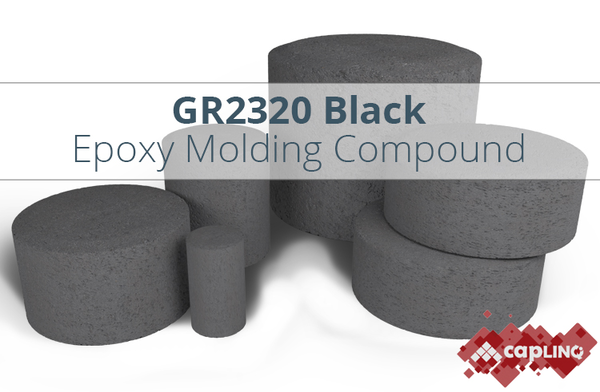

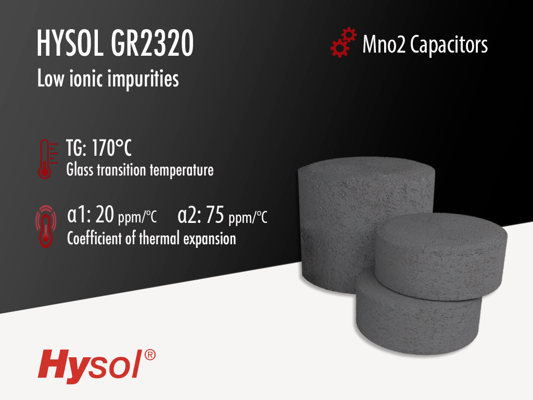

Hysol GR2320 is a black semiconductor-grade epoxy molding compound designed for the encapsulation and protection of Manganese Oxide or MnO2 tantalum capacitors. This laser markable product is filled by 71% filler weight, has low ionic impurities and excellent thermal cycling performance.
Hysol GR2320 is an Environmentally "Green" product that replaces MG33F-0602 & MG33F-0593. Environmentally "green", meaning that it doesn't contain any halogens including bromine, antimony or phosphorus flame retardants. MG33F-0602 & MG33F-0593 dominated the space for tantalum capacitors but used halogen-containing flame retardants. This next generation epoxy mold compound replaces these older generation products.
Hysol GR2320 is designed to achieve JEDEC Level 1 requirements at 260°C reflow temperature on Maganese Oxide MnO2 capacitors. Its fast cure time also ensures that it is compatible with the latest automold manufacturing equipment while it also meets UL 94 V-0 Flammability at 1/4 inch (6.35mm) thickness.
HYSOL GR2320
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks
