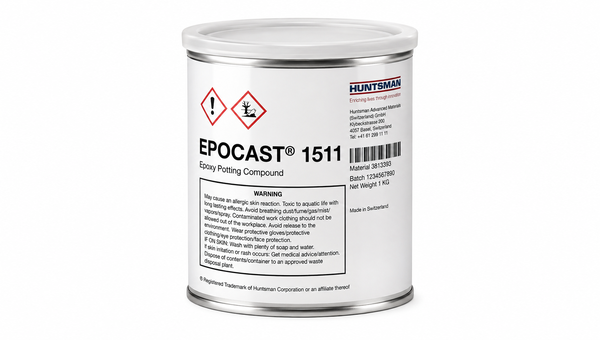

EPOCAST 1511
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Non-Sag Placement Control
- 40 to 60-Minute Working Window
- BMS 5 to 28 Type 3 Qualified
Product Description
EPOCAST® 1511 A/B is a high-density, non-flowing, two-part epoxy syntactic paste for edge filling honeycomb structures and metal fairings, as well as for bonding applications. The gray mixed system uses a 100:15 resin-to-hardener ratio by weight and provides a typical 40–60 minute work life for a 50 g mass at 25°C. It can cure for 24 hours at room temperature or be gelled at room temperature and post-cured for 5 hours at 52°C. After cure, typical properties at 25°C include 69 MPa compressive strength and 310 MPa compressive modulus. EPOCAST® 1511 A/B is qualified to BMS 5-28, Type 3.
Key features
- Non-flow edge filler: Paste consistency supports controlled placement in honeycomb edges and metal fairings.
- Practical processing window: Provides a typical 40–60 minute work life for a 50 g mass at 25°C.
- Flexible cure options: Supports a 24-hour room-temperature cure or an accelerated 5-hour cure at 52°C after gelling at room temperature.
Applications / Suitable for
- Honeycomb structure edge filling
- Metal fairing edge filling
- Bonding applications requiring a non-flowing epoxy syntactic paste
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
Typical component, mixed-system and processing data. Values are typical and are not product specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Resin: gray; Hardener: off-white; Mixed system: gray | — | Visual |
| Density | Resin: 1.20; Hardener: 1.15; Mixed system: 1.25 | g/cm³ | ASTM D1622; typical at 25°C |
| Viscosity / consistency | Resin: 195,000; Hardener: paste; Mixed system: paste | cP / form | ASTM D2196; typical at 25°C |
| Mix ratio | 100:15 | parts by weight | EPOCAST 1511 A Resin:EPOCAST 1511 B Hardener |
| Material temperature before mixing | Above 18 | °C | Mix both components thoroughly for several minutes |
| Work life | 40–60 | min | Typical; 50 g mixed mass at 25°C |
| Typical cure cycle | 24 h at room temperature; or gel at room temperature plus 5 h at 52°C | — | Typical processing cycle |
| Maximum flow | 2.5 (6.4) | in (cm) | Typical; BMS 5-28 |
After-processing / final-state properties
Typical cured-material and bonded-joint data under the stated test conditions. Values are not guaranteed design specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Tensile lap shear | 1,200 (8.3) | psi (MPa) | ASTM D1002; chromic-acid-etched aluminum |
| Compressive strength | 10.0 (69) | ksi (MPa) | ASTM D695; typical at 25°C |
| Compressive modulus | 45 (310) | ksi (MPa) | ASTM D695; typical at 25°C |
| Weight gain after immersion | 1.0 in each listed medium | % | ASTM D543; 24 h at 25°C in TT-S-735 Type III test fluid, MIL-H-5606 hydraulic fluid, Skydrol 500-A and distilled water |
