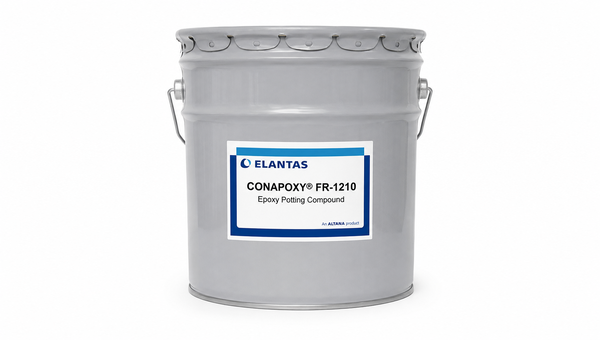

ELANTAS FR-1210
Harmonization Code : 3404.90.00.00 | Artificial waxes and prepared waxes : Other
Main features
- Low-Shrinkage Electrical Potting Resin
- EA-02/EA-028/EA-87 Hardener Compatibility
- 4,500 to 10,000 cP Mixed Viscosity
Product Description
CONAPOXY® FR-1210 Epoxy Encapsulant Resin is a tan, mineral-filled epoxy resin for two-component electrical potting and casting systems. The resin may be combined with CONACURE EA-02, EA-028, or EA-87 to produce systems with low shrinkage, controlled coefficient of thermal expansion, resistance to mechanical and thermal shock, and electrical insulation. The resin has a typical viscosity of 95,000 cP and specific gravity of 1.66 at 25°C. Published mixed-system viscosity ranges from 4,500 to 10,000 cP, with 24-hour room-temperature or two-hour 60°C cure schedules.
Key features
- Mineral-filled epoxy resin: The resin is formulated for low-shrinkage potting and casting systems.
- Three hardener options: EA-02, EA-028, and EA-87 provide different mixed viscosity and cured properties.
- Room-temperature or heat cure: Published systems cure for 24 hours at 25°C or two hours at 60°C.
Applications / Suitable for
- Electrical and electronic potting
- Epoxy casting
- Assemblies exposed to mechanical and thermal shock
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical as-supplied or processing-state values unless otherwise stated. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Resin color | Tan | N/A | As supplied |
| Resin specific gravity | 1.66 | N/A | At 25°C |
| Resin viscosity | 95,000 | cP | At 25°C |
| Mixed viscosity | 4,500 to 10,000 | cP | Depending on hardener |
| Gel time | 30 to 60 | min | At 25°C, hardener dependent |
| Room-temperature cure | 24 | h | At 25°C |
| Alternate cure | 2 | h | At 60°C |
| Shelf life | 18 | months | At 20°C to 30°C in original containers |
After-processing / final-state properties
Typical cured or final-state values under the stated system and test conditions. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Hardness | 80 to 90 | Shore D | Depending on hardener |
| Tensile strength | 6,500 to 8,050 | psi | Depending on hardener |
| Glass-transition temperature | 70 to 90 | °C | Depending on hardener |
| Linear shrinkage | 0.4 to 0.9 | % | Depending on hardener |
| Dielectric strength | 375 | V/mil | All three documented systems |
| Volume resistivity | 3.0 × 10¹³ to 4.2 × 10¹⁵ | ohm·cm | Depending on hardener |
