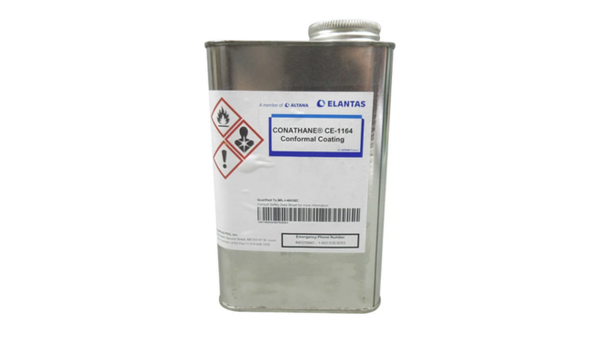

ELANTAS CE-1164
Harmonization Code : 3404.90.00.00 | Artificial waxes and prepared waxes : Other
Main features
- Transparent Conformal Coating
- 20 to 30-Minute Tack-Free Time
- 500 V/mil Dielectric Strength
Product Description
CONATHANE® CE-1164 Polyurethane Conformal Coating is a solvent-borne, single-component, transparent polyurethane conformal coating for thin-film protection of printed circuit boards and electronic components. The fast-curing coating may be sprayed, dipped, or brushed and includes fluorescence for inspection under ultraviolet light. It is documented for electrical and moisture-barrier performance, hydrolytic stability, flexibility, and adhesion to phenolic and epoxy-glass laminates. Typical as-supplied properties include 100 cP viscosity and 50% solids, with tack-free time of 20 to 30 minutes and full cure in 24 hours at 25°C.
Key features
- Fast-curing polyurethane coating: Typical tack-free time is 20 to 30 minutes with 24-hour cure at 25°C.
- UV inspection aid: The transparent coating fluoresces under ultraviolet light.
- Electrical insulation: Typical cured data include 3,500 V/mil dielectric strength and 1.5 × 10¹⁵ ohm·cm volume resistivity.
Applications / Suitable for
- Thin-film coating of printed circuit boards
- Electrical and moisture protection of components
- Phenolic and epoxy-glass laminate assemblies
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical as-supplied or processing-state values unless otherwise stated. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Product form | Single-component solvent-borne coating | N/A | As supplied |
| Appearance | Clear light amber | N/A | As supplied |
| Viscosity | 100 | cP | At 25°C |
| Specific gravity | 1.05 | N/A | At 25°C |
| Solids content | 50 | % | 135°C for 45 min |
| Flash point | 7 | °C | ASTM D93 |
| Tack-free time | 20 to 30 | min | At 25°C |
| Full cure | 24 | h | At 25°C |
After-processing / final-state properties
Typical cured or final-state values under the stated system and test conditions. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Dielectric strength | 3,500 | V/mil | ASTM D149 at 25°C |
| Volume resistivity | 1.5 × 10¹⁵ | ohm·cm | ASTM D257 at 25°C |
| Dielectric constant | 2.7 | N/A | ASTM D150 at 1 MHz and 25°C |
| Dissipation factor | 0.02 | N/A | ASTM D150 at 1 MHz and 25°C |
| Thermal shock | Pass | N/A | MIL-STD-810B, -65°C to 125°C |
| Hydrolytic stability | No discoloration or degradation | N/A | 120 days at 85°C and 95% RH |
