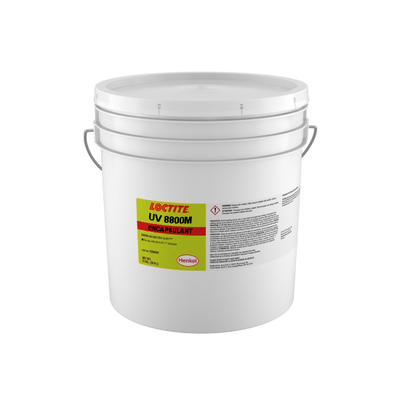

LOCTITE ECCOBOND UV8800M
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- UV Cure
- Cures rapidly
- Excellent adhesion
Product Description
LOCTITE UV8800M epoxy encapsulant is developed to meet high temperature thermal cycling specifications. It UV cures to form a hard translucent coating when exposed to UV light of sufficient intensity. The curing of the product is not inhibited by oxygen, resulting in excellent surface cure.
LOCTITE UV8800M exhibits viscosity characteristics and dearated condition that make it suitable for accurate dispensing with excellent shape control. This encapsulant is typically used for CSP and BGA packages and is, among others, used on Glass, Epoxy, Polyimide and Polyester substrates.
UV Cure Condition
Medium pressure mercury lamp:
- Light Dose, mW/cm² 100
- Exposure Time, seconds 2
- UV radiation, , nm (UVA) 315 to 400
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Additional Information
LOCTITE UV8800M can be cured by irradiation with ultraviolet and visible light as well as LED-UV light with single wavelength distribution of sufficient intensity. Cure rate and depth of cure depend on the intensity, spectral distribution of the light source, exposure time and light transmittance of the substrate through which the light must pass.
