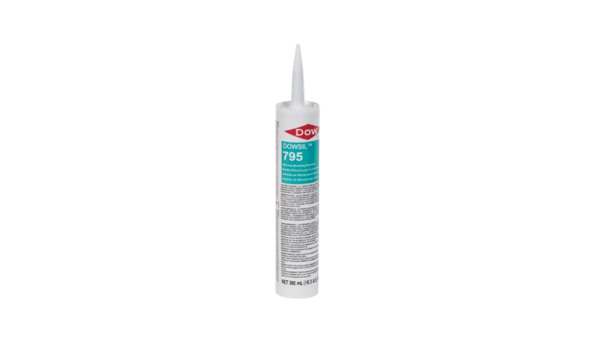

DOWSIL 795
Harmonization Code : 2901.10.00.00 | Acyclic hydrocarbons; Saturated
Main features
- Structural and Weatherseal Versatility
- Class 50 Glazing Movement
- 20-30-Minute Glazing Work Window
Product Description
DOWSIL 795 Silicone Building Sealant serves structural and nonstructural glazing, panel attachment and weathersealing with a one-part, neutral-cure silicone formulation. The non-sag material provides a 20-30 minute working time, three-hour tack-free time and seven- to fourteen-day cure at 25 deg C and 50% relative humidity. After 21 days, the sealant has Shore A 35 hardness, 32 lb/in peel strength and +/- 50% joint movement capability. Structural applications require a properly designed joint, substrate testing, installation controls and prior approval by the local Dow sales application engineer.
Key features
- Structural and weatherseal versatility: One material is used for glazing, panel attachment and weathersealing.
- 20-30 minute working time: Supports application and tooling before surface cure.
- +/- 50% joint movement: ASTM C719 movement capability applies after 21 days of cure.
Applications
Structural and nonstructural glazing, panel attachment, stiffener bonding and weathersealing within project-specific design controls.
Technical Specifications
Physical Properties
Mechanical Properties
Additional Information
As-supplied / before-processing properties
Typical application and cure-development properties. Values are not specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Tack-free time | 3 | hr | ASTM C679; 50% relative humidity |
| Curing time | 7-14 | days | At 25 deg C and 50% RH |
| Full adhesion | 14-21 | days | Typical cured joint |
| Flow, sag or slump | 0.1 (2.54) | in (mm) | ASTM C639 |
| Working time | 20-30 | min | Typical value |
| VOC content | 30 | g/L | SCAQMD basis |
After-processing / final-state properties
Typical properties after 21 days at 25 deg C and 50% relative humidity unless noted.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Durometer hardness | 35 | Shore A | ASTM D2240 |
| Peel strength | 32 (5.7) | lb/in (kg/cm) | ASTM C794 |
| Tension adhesion at 25% extension | 45 (0.310) | psi (MPa) | ASTM C1135 |
| Tension adhesion at 50% extension | 60 (0.) | psi (MPa) | ASTM C1135 |
| Joint movement capability | +/- 50 | % | ASTM C719 |
| Staining | None | ASTM C1248; granite, marble, limestone, brick and concrete | |
| Tension adhesion after QUV, 25% extension | 35 (0.241) | psi (MPa) | ASTM C1135; after 10000 hr QUV |
| Tension adhesion after QUV, 50% extension | 50 (0.345) | psi (MPa) | ASTM C1135; after 10000 hr QUV |
