DK15-0463 Black Insulating Epoxy Coating Powder
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- DK15-0463 Coating Powder
- Black, insulating, epoxy based
- Humidity-resistant for outdoor low voltage busbars
Product Description

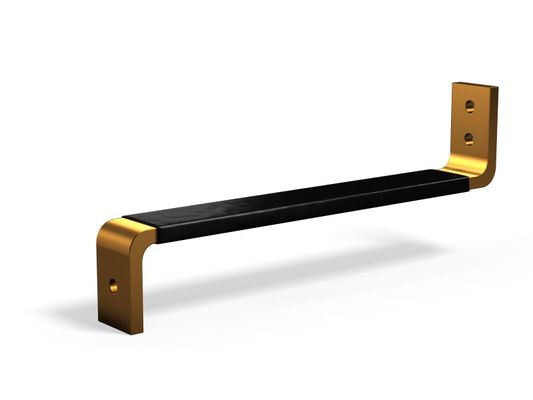

DK15-0463 is an epoxy-based coating powder developed for the insulation of low-voltage busbars. It offers improved moisture resistance and dielectric strength along with a smooth surface appearance. The particle size distribution is optimized for use in large fluid bed coating operations. DK15-0463 has a UL Relative Thermal Index (RTI) rating of 130°C, making it ideal for applications requiring high thermal stability. Used for over 20 years by major power distribution companies for low-voltage outdoor bus bar applications, DK15-0463 provides a reliable coating with high edge coverage. The fusion bonded coating is smooth, tough, and moisture-resistant for applications up to 600V. DK15-0463 is UL recognized Particle size is optimized for the fluidized bed coating process.
Advantages of DK15-0463 for Busbar Coating
- Excellent bed life—so important for large busbar coating operations
- Excellent moisture resistance, even in high temperatures and corrosive conditions
- Suitable for both copper and aluminum busbar coating
- Smooth surface allows closer bar spacing in busway
- An extremely reliable coating powder, used for decades in the power distribution industry
Typical applications and uses of DK15-0463 Black include:
- Low Voltage (600V) Copper, Aluminum and Brass Busbars
- Outdoor busbar applications
- Switchgear Equipment for Power Distribution
This product is no longer available. Some alternatives for busbar coating powders are:
