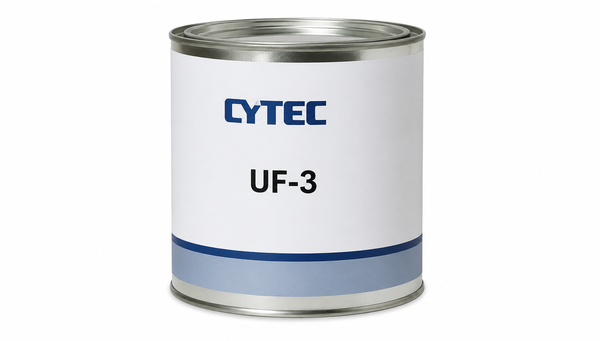

CYTEC UF-3 | Krayden

Main features

Two-Component Polyurethane Electronics-Packaging Foam
One-Hour Cure Cycle
Solvent, Oil, and Moisture Resistance

Product Description

CONATHANE® UF-3 Polyurethane Foam is a two-component liquid polyurethane foam for packaging electronic components and assemblies. The system cures at room temperature or with heat and is documented for low vapor pressure, electrical insulation, and resistance to moisture, oils, grease, and most solvents. Part A is dark amber and Part B is clear, with a 100:90 mix ratio by weight. Typical cure schedules are two to three hours at 25°C or one hour at 60°C, and the cured foam has a documented dielectric strength of 60 V/mil.

Key features

Electronic packaging foam: The two-component polyurethane system is documented for packaging electronic components and assemblies.
Room-temperature or heat cure: Typical cure schedules are two to three hours at 25°C or one hour at 60°C.
Electrical insulation: The cured foam has a documented dielectric strength of 60 V/mil.

Applications / Suitable for

Packaging electronic components and assemblies

TDS, SDS & Technical Documents

Technical Specifications

General Properties

Color

Dark Amber / Clear

Component System

Two (Prepolymer / Curative )

Density (g)

7.6 g/cm3

Specific Gravity

1.22 / 1.05

Chemical Properties

Water Absorption

0.6 %

Additional Information

Technical properties

As-supplied / before-processing properties

Typical as-supplied or mixed-state values unless otherwise stated. These values are not sales specifications.

Property	Value	Unit	Method / condition
Color, Part A	Dark amber	N/A	As supplied
Color, Part B	Clear	N/A	As supplied
Viscosity, Part A	200	cP	At 25°C
Viscosity, Part B	7,500	cP	At 25°C
Specific gravity, Part A	1.22	N/A	At 25°C
Specific gravity, Part B	1.05	N/A	At 25°C
Mix ratio	100:90	parts by weight	Part A : Part B
Cure options	2 to 3 h at 25°C; 1 h at 60°C	N/A	Typical schedules
