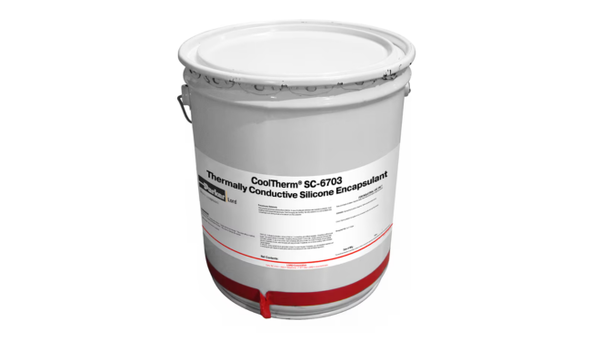

COOLTHERM SC-6703
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- 0.8 W/(m K) Thermal Encapsulation
- 8,000 cP Mixed Viscosity
- 19.7 kV/mm Dielectric Strength
Product Description
CoolTherm® SC-6703 Thermally Conductive Silicone Encapsulant is a two-component silicone system designed for thermally conductive encapsulation of densely packed power units. It is available with black or white resin and uses a white hardener at a 1:1 ratio by weight. The mixed material has a typical 8,000 cP viscosity at 25°C, 1–2 hour working life at 25°C, and 12–14 minute gel time at 66°C. The documented cure is 4 hours at 65°C. Typical cured properties include 0.8 W/m·K thermal conductivity, 60 Shore A hardness, 19.7 kV/mm dielectric strength, and 1 × 1014 ohm-cm volume resistivity.
Key features
- Two-component thermally conductive silicone for densely packed power units
- Black-resin and white-resin variants with a common white hardener
- Simple 1:1 resin-to-hardener ratio by weight
- Low 8,000 cP mixed viscosity for automated meter/mix/dispense processing
- Typical 0.8 W/m·K thermal conductivity and 19.7 kV/mm dielectric strength
- Low-shrinkage, low-stress cured silicone positioning
- Meets UL 94 V-0 requirements, subject to the current listed formulation and construction
Applications
- Thermally conductive encapsulation of densely packed power units
- Electrical and electronic modules requiring flexible silicone insulation
- Critical or extremely high-voltage assemblies using validated vacuum-assisted void control
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Mechanical Properties
Electrical Properties
Additional Information
CoolTherm® SC-6703 Thermally Conductive Silicone Encapsulant
A two-component silicone system developed to provide thermal conductivity and electrical insulation when encapsulating densely packed power units. The platform is available with black or white resin, uses a common white hardener, and supports automatic meter/mix/dispense processing.
.png)
Black and white resin variants with a common hardener
Thoroughly premix each component before combining the selected resin with SC-6703 hardener at 1:1 by weight.
| Property | SC-6703 resin | SC-6703 hardener | Mixed material |
|---|---|---|---|
| Appearance | Black liquid or white liquid | White liquid | Light-grey liquid with black resin; white liquid with white resin |
| Viscosity at 25°C | 15,000 cP | 6,000 cP | 8,000 cP |
| Specific gravity | 2.09 | 1.91 | 2.0 |
| Mix ratio | 1:1 by weight | ||
| Gel time at 66°C | 12–14 minutes | ||
| Working life at 25°C | 1–2 hours | ||
Premix both components, combine 1:1 by weight, minimise air, dispense, and cure
Thoroughly mix each component separately before combining the selected SC-6703 resin with SC-6703 hardener at a 1:1 ratio by weight. Automatic meter/mix/dispense equipment may be used for high-volume production.
- Use a closed-chamber mechanical mixer where practical to reduce introduced air.
- For extremely high-voltage or other critical applications, evaluate vacuum processing to minimise bubbles and voids.
- Apply using automatic meter/mix/dispense equipment.
- Avoid surfaces containing cure-inhibiting amines, sulphur, or tin salts.
- When substrate compatibility is uncertain, apply a test patch and allow the normal cure time.
- Cure for four hours at 65°C after the material reaches the target temperature.
.png)
Storage and industrial handling
Each component has a six-month shelf life when stored at 25°C in its original unopened container. Periodically rotate the material within its container because settling will occur if it is not mixed. Keep containers closed, upright, and in well-ventilated storage. The supplied resin SDS is dated 19 October 2017 and identifies chronic aquatic hazard and a formaldehyde-generation warning for methylpolysiloxanes at approximately 150°C and above in oxygen-containing atmospheres. Confirm current regional resin and hardener SDS documents before publication and use.
Thermal, mechanical, and electrical properties
The following values are typical cured-material results. The supplier reports the cured-property dataset using a 1–2 hour cure at 65°C, while the application section specifies four hours at 65°C for production cure. Final production performance should be validated using the selected cure cycle.
| Property | Typical value | Context |
|---|---|---|
| Thermal conductivity | 0.8 W/m·K | Hot Disc Transient Method, ISO 22007-2. |
| Coefficient of linear thermal expansion | 220 ppm/°C | ASTM C864. |
| Hardness | 60 Shore A | Flexible cured silicone. |
| Tensile strength | 1.38 MPa (200 psi) | ASTM D412 bulk-material property. |
| Elongation at break | 80% | ASTM D412. |
| Volume resistivity at 25°C | 1 × 1014 ohm-cm | ASTM D257; not a finished-assembly working-voltage rating. |
| Dielectric strength | 19.7 kV/mm (500 V/mil) | ASTM D149; breakdown property rather than design working voltage. |
| Dielectric constant | 4.25 at 1 MHz and 25°C | ASTM D150. |
| Dissipation factor | 0.02% at 1 MHz and 25°C | ASTM D150 as published in DS3568. |
Thermal encapsulation for densely packed power units
SC-6703 is directly positioned for densely packed power units requiring heat transfer, electrical insulation, and a flexible silicone encapsulant. Final selection must account for component layout, fill depth, void tolerance, cure inhibition, voltage, creepage and clearance, thermal path, enclosure design, colour requirement, repairability, and environmental exposure.
.png)
.png)
.png)
Validate SC-6703 for your power-unit encapsulation process
Krayden can help review black or white resin selection, 1:1 weight control, component premixing, automated meter/mix/dispense equipment, vacuum processing, cure inhibition, fill geometry, void control, cure profile, thermal path, electrical insulation, UL scope, and assembly-level qualification for CoolTherm® SC-6703.
