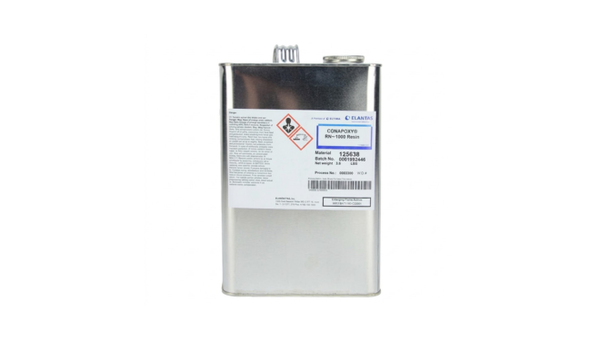

CONAPOXY RN-1000
Harmonization Code : 3404.90.00.00 | Artificial waxes and prepared waxes : Other
Main features
- Amber Epoxy Potting and Casting Resin Compatible
- 24-Hour 25 deg C Cure
- Three Curing-Agent Systems
Product Description
CONAPOXY® RN-1000 Epoxy Encapsulant Resin is an amber epoxy resin for potting and casting when combined with CONACURE EA-02, EA-028, or EA-87 curing agent. The three documented systems cure at room temperature or with heat and are positioned for epoxy encapsulation where electrical properties, thermal-shock resistance, low exotherm, and low shrinkage are required. The resin has a listed specific gravity of 1.13. Mix ratio, mixed viscosity, Shore D hardness, tensile strength, and volume resistivity vary with the selected curing agent, so the system configuration must remain explicit.
Key features
- Potting and casting resin: The amber epoxy resin is used with CONACURE EA-02, EA-028, or EA-87.
- Room-temperature or heat cure: Each documented system cures for 24 hours at 25°C or two hours at 60°C.
- Hardener-dependent properties: Mix ratio, mixed viscosity, hardness, tensile strength, and volume resistivity vary by curing agent.
Applications / Suitable for
- Epoxy potting and casting
- Electrical and electronic encapsulation
- Systems using CONACURE EA-02, EA-028, or EA-87
TDS, SDS & Technical Documents
Technical Specifications
Physical Properties
General Properties
Additional Information
As-supplied / before-processing properties
Typical as-supplied or mixed-state values unless otherwise stated. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Resin color | Amber | N/A | As supplied |
| Resin specific gravity | 1.13 | N/A | As supplied |
| Mix ratio with EA-02 | 100:11 | parts by weight | Resin : curing agent |
| Mixed viscosity with EA-02 | 600 | cP | At 25°C |
| Mix ratio with EA-028 | 100:28 | parts by weight | Resin : curing agent |
| Mixed viscosity with EA-028 | 500 | cP | At 25°C |
| Mix ratio with EA-87 | 100:37 | parts by weight | Resin : curing agent |
| Mixed viscosity with EA-87 | 250 | cP | At 25°C |
