ARALDITE 2081-10
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Steel-to-CFRP Acrylic Bonding
- 10-Minute Open Time
- Non-Flammable Bonding Formulation
Product Description

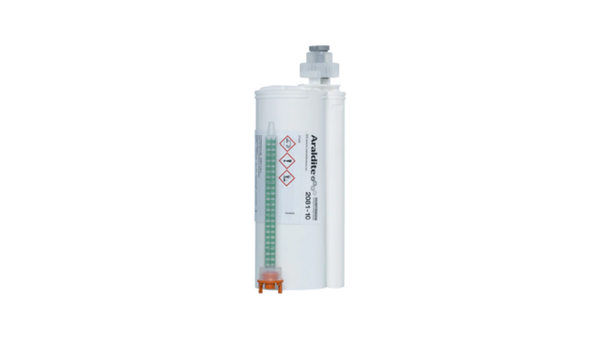

ARALDITE® 2081-10 is a fast-curing, two-part acrylic structural adhesive developed for bonding a range of plastics, composites and metals. The low-odour, non-flammable system provides a 10-minute open time and a 10-11 minute pot life for a 20 g mix at 25°C, supporting rapid assembly operations. The mixed adhesive is off-white and combines high strength with good flexibility. It can be dispensed from mixer-equipped cartridges or applied manually or robotically. Tested plastic substrates include ABS, PMMA, PVC and PC; polyolefins and other low-surface-energy materials are excluded. Proper cleaning and surface preparation remain important for durable bonds.
Key features
- Rapid strength development: 10-minute open time; on sandblasted aluminium at 23°C, typical lap shear exceeds 1 MPa in less than 20 minutes and 10 MPa in less than 23 minutes.
- Broad substrate range: Supports bonding of tested plastics, composites and metals; not intended for polyolefins or other low-surface-energy materials.
- Low-odour, non-flammable formulation: Two-part acrylic system with good flexibility and an off-white mixed appearance.
Applications / Suitable for
- Plastic bonding involving ABS, PMMA, PVC or PC.
- Composite bonding involving CFRP and epoxy-, polyester- or vinyl ester-based GRP.
- Metal and mixed-material assemblies involving aluminium, steel, stainless steel, copper or brass.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied and mixed properties
Values are listed in Resin / Hardener / Mixed order where applicable. Data are typical supplier values and are not guaranteed specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Colour | White / Light grey / Off-white | - | Visual; Resin / Hardener / Mixed |
| Specific gravity | 1.04 / 1.38 / ca. 1.1 | - | Resin / Hardener / Mixed |
| Viscosity | 70-80 / 60-90 / 70-90 | Pa.s | At 25°C; Resin / Hardener / Mixed |
| Mix ratio by weight | 100:13 | parts | Resin:Hardener |
| Mix ratio by volume | 100:10 | parts | Resin:Hardener |
| Pot life | 10-11 | minutes | 20 g mixed material at 25°C |
| Time to peak exotherm | 14-18 | minutes | 20 g mixed material |
Store sealed components in their original containers at 2-8°C for up to 24 months. The product may be brought to room temperature before use, but cumulative room-temperature exposure should not exceed six months. Prolonged exposure above 25°C reduces shelf life. Follow the expiry date on the packaging and the applicable Safety Data Sheet for handling precautions.
Product-specific technical guidance
Typical cured properties
Typical laboratory values for adhesive cured seven days at room temperature. Values are configuration-specific and are not design allowables or guaranteed specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Glass transition temperature - onset | 35 | °C | DMA; cure seven days at room temperature |
| Glass transition temperature - peak | 65 | °C | DMA; cure seven days at room temperature |
| Tensile strength | 17-20 | MPa | ISO 527; cure seven days at room temperature; test at 23°C |
| Tensile modulus | 700-900 | MPa | ISO 527; cure seven days at room temperature; test at 23°C |
| Elongation at break | ca. 60-80 | % | ISO 527; cure seven days at room temperature; test at 23°C |
Performance evidence
The supplier TDS includes typical joint-strength and durability testing across prepared substrates and defined laboratory conditions. The results should be used for product screening and validated in the intended joint design.
