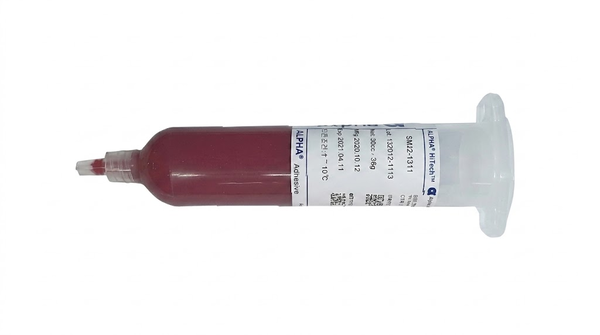

ALPHA HT-130DM
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- Non-Sag High-Speed Dispensing
- Fast 80-Second Heat Cure
- High-Resistance Electrical Insulation
Product Description
ALPHA HiTech HT-130DM SMD Adhesive is a one-part, red epoxy paste for heat-cured attachment of surface-mount components in electronics assembly. It is formulated for high-speed dispensing and screen printing, with non-sag behavior and a thixotropic index above 4.0. A typical seven-day pot life at 25 deg C provides an extended working window, while a representative convection-oven cure is 80 seconds at 150 deg C. After cure, the material has 80 to 90 Shore D hardness and a glass transition temperature of at least 100 deg C. The adhesive is used for surface-mount component attachment in assembly processes that include wave soldering.
Key Features
- Controlled deposition: Non-sag epoxy paste supports high-speed dispensing and screen printing.
- Fast heat cure: Representative convection-oven cure is 80 seconds at 150 deg C; actual cure depends on equipment and assembly conditions.
- Electrical insulation: Cured insulation resistance is at least 1 x 10^12 ohm after 95 hours at 40 deg C and 95% RH.
Applications
Heat-cured attachment of surface-mount components in electronics assembly, including processes with wave soldering.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
Typical Properties
As Supplied
Typical uncured-material values unless otherwise stated.
| Property | Typical Value | Units | Method or Condition |
|---|---|---|---|
| Form and color | Red paste | As supplied | |
| Viscosity | 550 to 650 | Poise | Malcom PC-10A, 30 rpm, 25 deg C |
| Thixotropic index | > 4.0 | Typical | |
| Specific gravity | 1.0 to 1.4 | Typical | |
| Pot life | 7 | days | 25 deg C |
| Shelf life | 6 | months | 1 to 10 deg C |
Typical Properties
Final State
Typical cured-material values. The source does not state one common cure schedule for every test specimen.
| Property | Typical Value | Units | Method or Condition |
|---|---|---|---|
| Hardness | 80 to 90 | Shore D | Cured material |
| Glass transition temperature | >= 100 | deg C | DSC |
| CTE below Tg | 65 +/- 10 | ppm/deg C | Cured material |
| CTE above Tg | 180 +/- 20 | ppm/deg C | Cured material |
| Corrosion | None | 95 hours at 40 deg C and 95% RH | |
| Moisture absorption | < 1 | % by weight | 24 hours in water at 25 deg C |
| Insulation resistance | >= 1 x 10^12 | ohm | 95 hours at 40 deg C and 95% RH |
