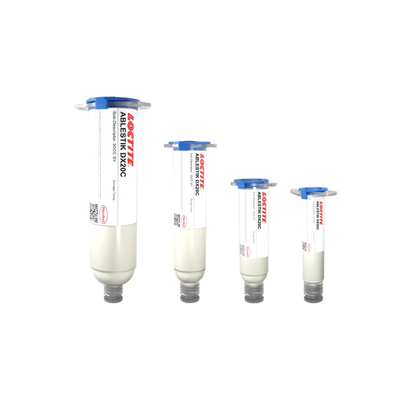

LOCTITE ABLESTIK DX20C
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Translucent
- Non conductive
- For GaN LEDs
Product Description
LOCTITE ABLESTIK DX20C dielectric adhesive offers excellent adhesion strength, especially at wire bonding process temperature to minimize defect rate at assembly. It features strong heat / UV resistance and can be applied by pin transfer, stamping and dispensing.
LOCTITE ABLESTIK DX20C is a translucent, one component die attach that doesn't yellow and has excellent adhesion for LED applications on GaN (Gallium Nitride) substrates.
Cure Schedule
- 1 hour @ 170°C
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Specific GravitySpecific Gravity
1.17Work life @25°CWork life @25°C
120 hoursChemical Properties
Moisture absorptionMoisture absorption
0.6 %Physical Properties
ViscosityViscosity
12,000 mPa.s
