LOCTITE ABLESTIK 550K
Harmonization Code : 3920.99.28.90 | Other plates, sheets, film, foil and strip, of plastics, non-cellular and not reinforced, laminated, supported or similarly combined with other materials ; Of other plastics ; Other; Other
Main features
- Low cure temperature
- Hard to bond metals
- Thermally conductive
Product Description

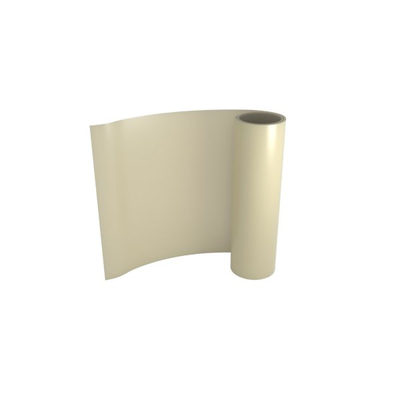

LOCTITE ABLESTIK 550K is a white epoxy film designed for substrate attach and heat sink bonding. It offers high thermal conductivity and low cure temperature and comes on a glass fabric carrier.
LOCTITE ABLESTIK 550K is a non-electrically conductive, epoxy assembly film commonly used on Gold and gold plated surfaces and is suitable for an array of difficult-to-bond metals.
Cure Schedule
- 30min @150°C
- 2 hours @ 125°C
ABLESTIK 550K
1. Select Package Type
2. Select Thickness
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 31 days
Shipping in 12 weeks
Shipping in 55 days
Shipping in 31 days Shipping in 12 weeks Shipping in 55 daysTDS, SDS & Technical Documents
Technical Specifications
General Properties
Work life @25°CWork life @25°C
4392 hoursThermal Properties
Glass Transition Temperature (Tg)Glass Transition Temperature (Tg)
102 °CThermal ConductivityThermal Conductivity
0.8 W/m.KWeight Loss @ 300°CWeight Loss @ 300°C
0.37 %Electrical Properties
Volume ResistivityVolume Resistivity
7200000000000 Ohms⋅cm
