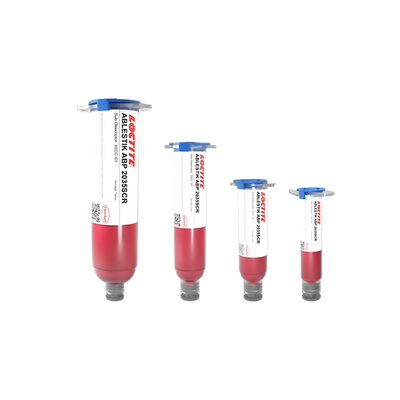

LOCTITE ABLESTIK 2035SC
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Low cure temperature
- Smart card applications
- Fast cure
Product Description
LOCTITE® ABLESTIK 2035SC non-conductive die attach adhesive has been formulated for use in high throughput die attach applications. This material is designed to minimise stress and resulting warpage between dissimilar surfaces.
LOCTITE® ABLESTIK 2035SC is isothermal and based on a proprietary hybrid chemistry that offers low stress and cures fast in relatively low temperatures. This combination makes it ideal for snap cure smart card applications.
Cure Schedule
- 90 seconds @ 110°C
- 60 seconds @ 120°C or 10 seconds @ 150°C
ABLESTIK 2035SC
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 15 days
Shipping in 12 weeks
Shipping in 40 daysTDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Additional Information
LOCTITE ABLESTIK 2035SC is isothermal at 80°C.
The following DSC graph shows 9.9mg on a 40°C/min ramp from 40-80°C with 15min dwell.
