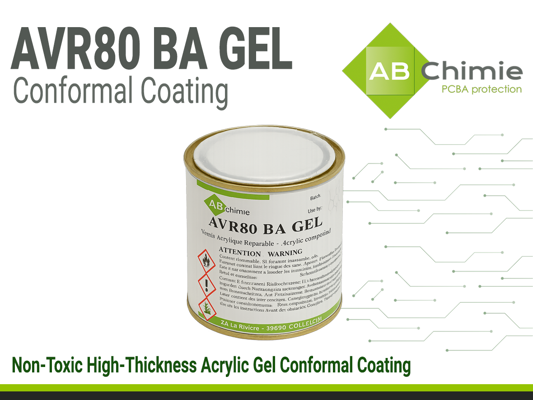

ABchimie AVR80 BA GEL Removable Acrylic Coating
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- Can be soldered through
- Wide temperature range -65°C to +150°C
- Excellent adhesion
Product Description
ABchimie AVR80 BA GEL is a non‑toxic, flexible, transparent acrylic gel coating developed to provide high‑performance protection for electronic circuitry. Engineered for applications requiring enhanced environmental resistance and thicker protective layers, the gel formulation allows for damming and the creation of high‑thickness deposits with excellent clarity and adhesion.
This coating is fully repairable and can be completely removed using ABchimie SND or DNS (both 100% ozone‑friendly), making it ideal for assemblies that may require rework while still maintaining top‑tier protective performance.
Product Key Features
- Allows creation of dams and high‑thickness protective layers
- Excellent adhesion under a wide range of climatic conditions
- Broad operating temperature range: –65°C to +150°C
- Can be soldered through safely without producing toxic gases
- Resistant to mold growth and environmental contaminants
- Fully removable with ABchimie SND or ABclean
Applications
- High‑thickness conformal coating applications
- Protective damming for selective coating areas
ABCHIMIE AVR80BAGEL
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
Electrical Properties
Thermal Properties
Additional Information
Product Selector Guide Between AVR80 BA GEL and AVR80 GEL
| Property | AVR80 BA GEL | AVR80 GEL |
| Type | Flexible, transparent acrylic gel coating | Gel‑form acrylic for high‑thickness deposits |
| Transparency |
Transparent gel
|
Ultra‑clear gel for optical/sensor application
|
| Form / Viscosity | Gel consistency | Gel consistency |
| Operating Temperature | −65 °C to +150 °C | −65 °C to +150 °C |
| Removability | Fully removable with ABchimie SND or ABclean | Removable with ABchimie SND or DNS |
| Solder‑Through Capability | Yes, no toxic gases produced | Yes, no isocyanates present |
| Drying / Curing | Air‑dries at room temperature | Touch‑dry <30 min; full cure 24h |
| Advantages | Applications requiring non‑toxic, thick protective gel layers (dams, barriers) | Applications requiring optical clarity, sensor encapsulation, or transparent high‑thickness protection |
Instructions for Use
Workshop temperatures of less than 16°C or relative humidities in excess of 75% are unsuitable for the application of AVR80 BA GEL.
Before coating Pcbs must be clean, dry and without moisture. The CI being humidity sensor, it is important to remove it before coating. A passage in oven from 1 to 2 hours at 60°C is generally enough.
AVR80 BA GEL contains a UV trace which allows inspection of the PCB after coating to ensure complete and even coverage. The stonger the reflected light, the thicker the coating layer is.
